The maximum operating temperature range for the MR25H128ACDF is -40°C to 85°C.
To ensure data integrity during power cycling, it is recommended to use a voltage supervisor or a power-on reset circuit to ensure that the device is properly initialized before accessing the memory.
The recommended clock frequency for the MR25H128ACDF is up to 40 MHz, but it can operate at frequencies up to 50 MHz with reduced voltage supply.
In case of a write error, the device will set the Write Enable Latch (WEL) bit in the Status Register. The host should then re-write the data and verify the write operation.
The Write Protect (WP) pin is used to prevent accidental writes to the memory. When the WP pin is asserted, the device will not allow any write operations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MR25H128ACDF Overview

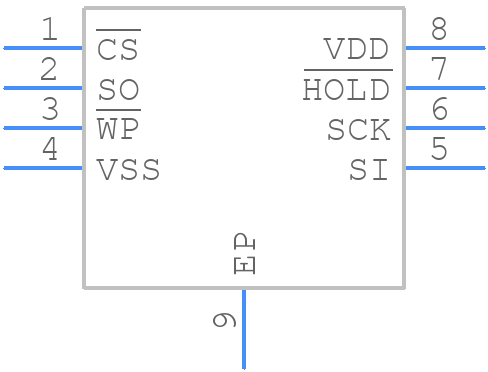

Use the download button to access the MR25H128ACDF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MR25H,
or try a keyword search, such as EEPROMs
