MR2A08AMYS35 - Everspin Technologies

Description: MRAM 4Mb 3.3V 35ns 512Kx8 Parallel MRAM

Download MR2A08AMYS35 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

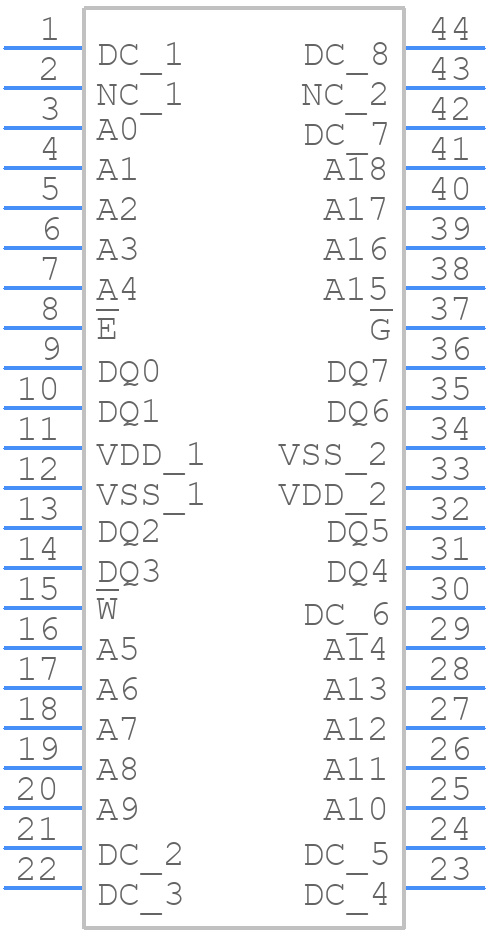

MR2A08AMYS35 - Everspin Technologies - PCB symbol
click to zoom
PCB Footprints

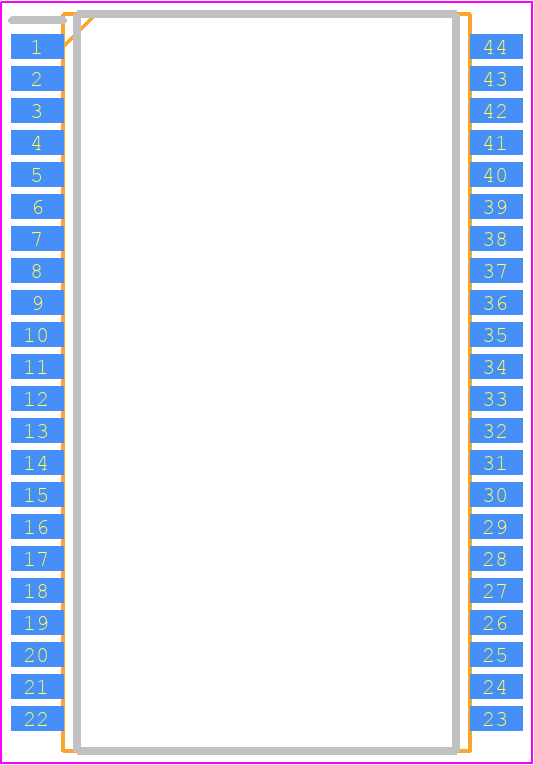

MR2A08AMYS35 - Everspin Technologies PCB footprint - Small Outline Packages - Small Outline Packages - 44-TSOP2
click to zoom
3D Models
MR2A08AMYS35 - Everspin Technologies - 3D model - Small Outline Packages - 44-TSOP2
click to zoom

MR2A08AMYS35 Details

  • Manufacturer Part Number:

    MR2A08AMYS35

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.400 MM, ROHS COMPLIANT, PLASTIC, TSOP2-44

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    Everspin Technologies

  • Access Time-Max:

    35 ns

  • JESD-30 Code:

    R-PDSO-G44

  • Length:

    18.41 mm

  • Memory Density:

    2097152 bit

  • Memory IC Type:

    MRAM

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Number of Words:

    262144 words

  • Number of Words Code:

    256000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP2

  • Package Equivalence Code:

    TSOP44,.46,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.02 A

  • Supply Current-Max:

    0.135 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Width:

    10.16 mm

MR2A08AMYS35 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MR2A08AMYS35 is -40°C to 85°C.
  • To ensure data integrity, it is recommended to use a voltage supervisor or a power-on reset circuit to ensure that the device is fully powered on before accessing the memory. Additionally, use of a capacitor on the VCC pin can help to filter out noise and prevent data corruption.
  • The recommended storage condition for the MR2A08AMYS35 is in a dry, cool place, away from direct sunlight and moisture. The device should be stored in its original packaging or in a similar anti-static package to prevent damage from electrostatic discharge.
  • The MR2A08AMYS35 is not designed to operate in radiation-intensive environments. If you need a radiation-hardened device, you should consider a different part number specifically designed for such applications.
  • During soldering and rework, it is recommended to follow standard ESD precautions, such as using an anti-static wrist strap and a grounded work surface. The device should be handled by the package, not the pins, to prevent damage.
