- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MRA403-BA
- Part Number MRA403-BA
- Manufacturer NKK Switches
- Pin Count 16
- Part Category Switch
- Package Category Other
- Footprint Name Other - MRA403
- Released Date Feb 28, 2019
- Last Modified Date Oct 15, 2023 12:15 PM UTC
- Pinout / Pin List Click Here (Member Only)
MRA403-BA Details
-
Manufacturer Part Number:
MRA403-BA
-
Brand Name:
NKK Switches
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Manufacturer:
NKK Switches
-
YTEOL:
0
-
Switch Type:
ROTARY SWITCH
MRA403-BA Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the MRA403-BA is -20°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
-
Yes, the MRA403-BA is designed for high-reliability applications, with a minimum of 100,000 electrical life cycles and a low contact resistance of 10mΩ max.
-
Yes, the MRA403-BA is designed to operate in harsh environments, with a sealed construction that provides IP67 protection against dust and water ingress.
-
The maximum voltage rating for the MRA403-BA is 125V AC/DC, making it suitable for a wide range of applications.
-
Yes, the MRA403-BA is RoHS and REACH compliant, making it suitable for use in European Union and other regions with similar regulations.
Trust Checks
Expert Contribution
System Verified
Community Approved
MRA403-BA Overview

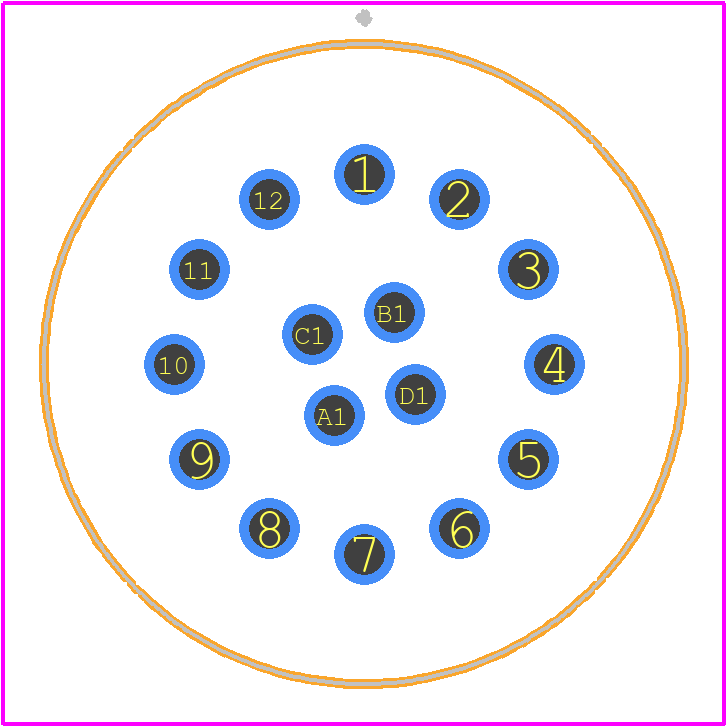

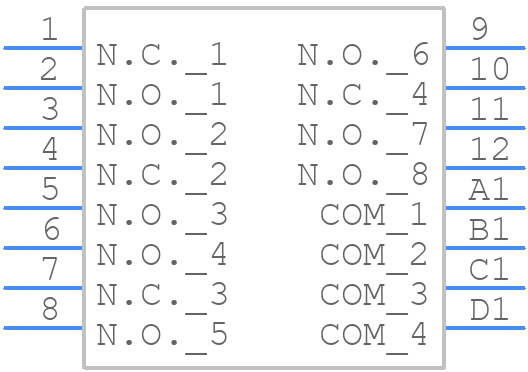

Use the download button to access the MRA403-BA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MRA40,
or try a keyword search, such as Rotary Switches
