MRA403 - NKK Switches

MRA403 Details

• Manufacturer Part Number:

  MRA403

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.20

• Manufacturer:

  NKK Switches

• YTEOL:

  0

• Actuator Color:

  BLACK

• Actuator Length:

  0.512 inch

• Actuator Material:

  POLYACETAL

• Actuator Type:

  ROTARY SHAFT

• Body Height:

  45.5168 mm

• Body Length or Diameter:

  16.002 mm

• Bushing Diameter:

  0.236 inch

• Bushing Length:

  0.197 inch

• Bushing Type:

  M6P0.75

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  0.25A@125VAC

• Contact Current(AC)-Max:

  0.25 A

• Contact Current(DC)-Max:

  0.25 A

• Contact (DC) Max Rating R Load:

  0.25A@48VDC

• Contact Function:

  ON-OFF

• Contact Resistance:

  0.01 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(AC)-Max:

  125 V

• Contact Voltage(DC)-Max:

  48 V

• Dielectric Withstand Volts:

  1000VAC V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  BRASS

• End Contact Plating:

  SILVER

• Housing Material:

  ZINC ALLOY

• Indexing Angle:

  30 deg

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  DIALLYL PHTHALATE

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Positions:

  3

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -10 °C

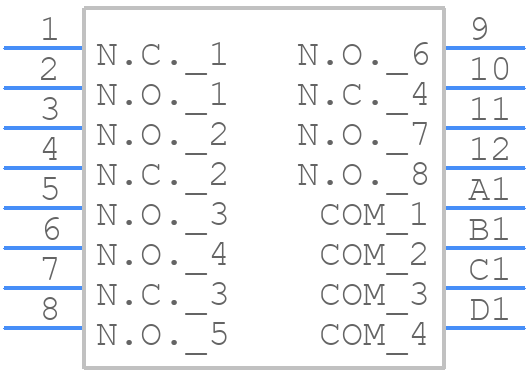

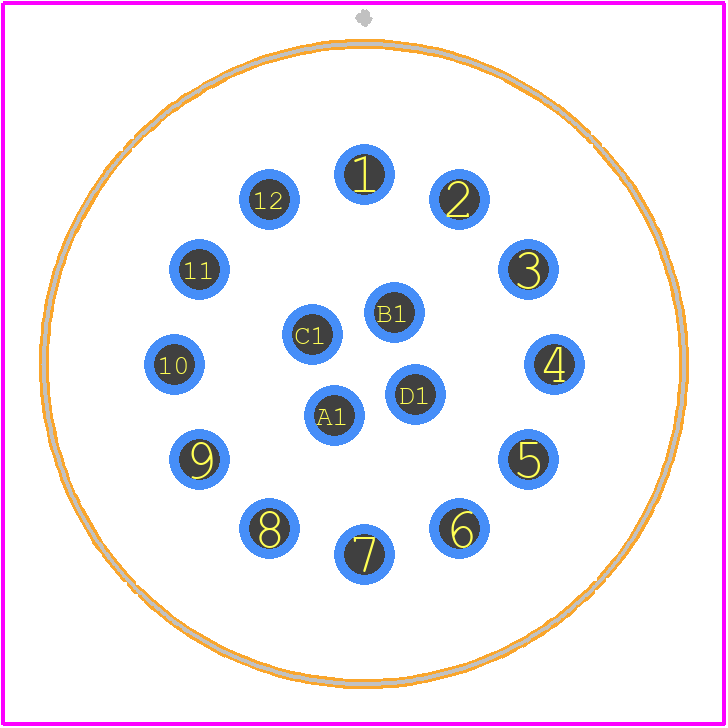

• PCB Hole Count:

  16

• Solderability:

  WAVE

• Surface Mount:

  NO

• Switch Action:

  CIRCULAR

• Switch Function:

  4P3T

• Switch Type:

  ROTARY SWITCH

• Terminal Length:

  0.394 inch

• Terminal Material:

  BRASS

• Termination Type:

  SOLDER
