MRB24H - NKK Switches

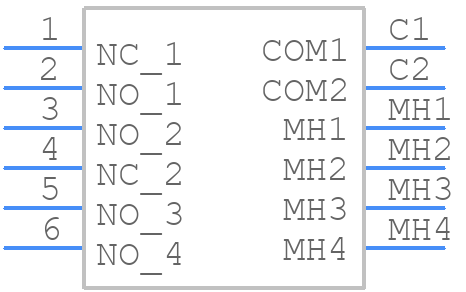

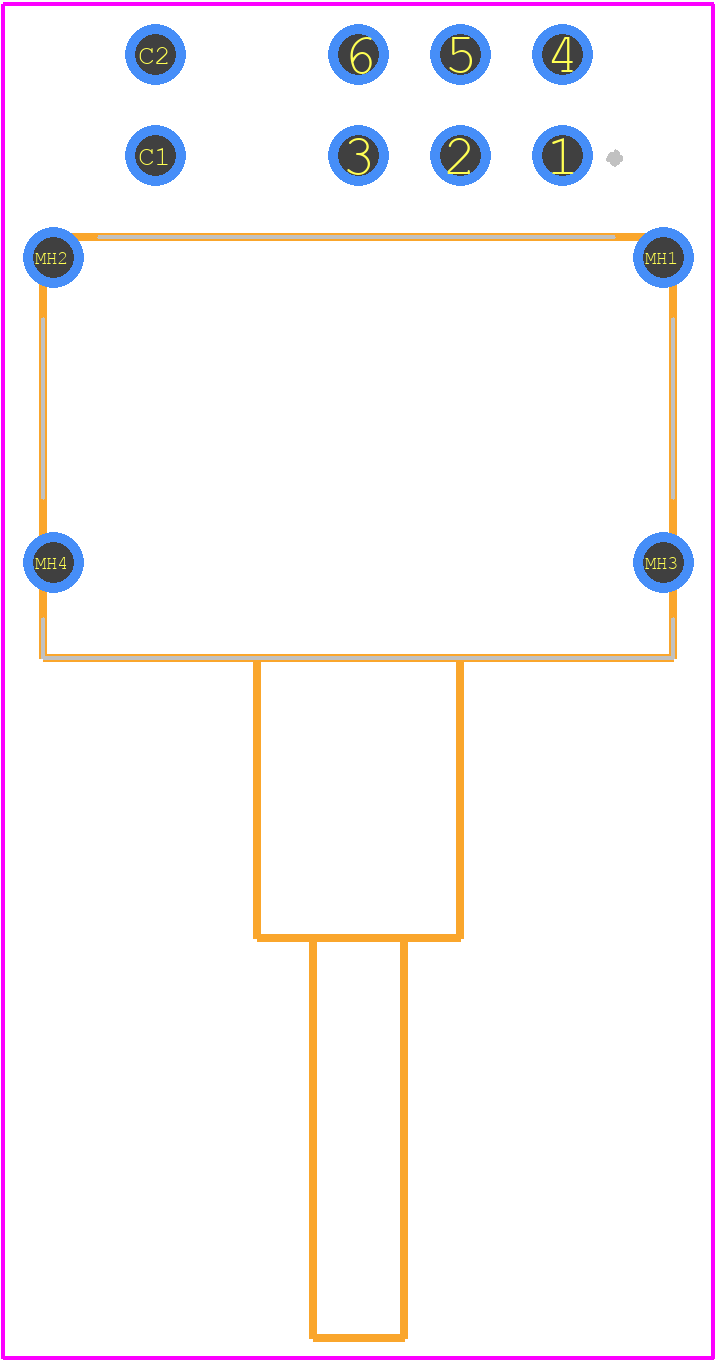

MRB24H Details

• Manufacturer Part Number:

  MRB24H

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  NKK Switches

• YTEOL:

  7

• Actuator Length:

  0.394 inch

• Actuator Material:

  BRASS

• Actuator Type:

  ROTARY

• Body Breadth:

  16.3068 mm

• Body Height:

  15.0876 mm

• Body Length or Diameter:

  15.748 mm

• Bushing Length:

  0.276 inch

• Bushing Type:

  M6P0.75

• Center Contact Material:

  BERYLLIUM COPPER

• Center Contact Plating:

  GOLD

• Contact (DC) Max Power Rating R Load:

  0.4VA@28VDC

• Contact Function:

  ON-ON-ON

• Contact Resistance:

  0.08 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  COPPER

• End Contact Plating:

  GOLD

• Indexing Angle:

  45 deg

• Insulation Resistance:

  100000000 Ω

• JESD-609 Code:

  e3

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -10 °C

• PCB Hole Count:

  12

• Solderability:

  WAVE

• Surface Mount:

  NO

• Switch Action:

  CIRCULAR

• Switch Function:

  DP3T

• Switch Type:

  ROTARY SWITCH

• Terminal Finish:

  TIN

• Terminal Length:

  0.138 inch

• Terminal Material:

  BRASS

• Termination Type:

  SOLDER
