MRK112-BA footprint, schematic symbol and 3D model by NKK Switches

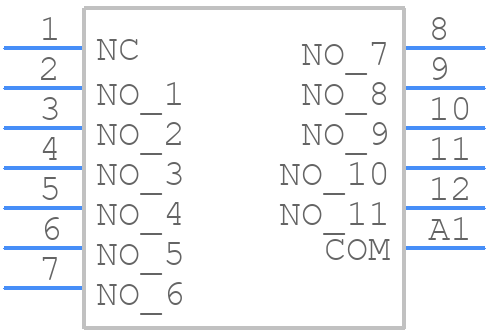

Symbol

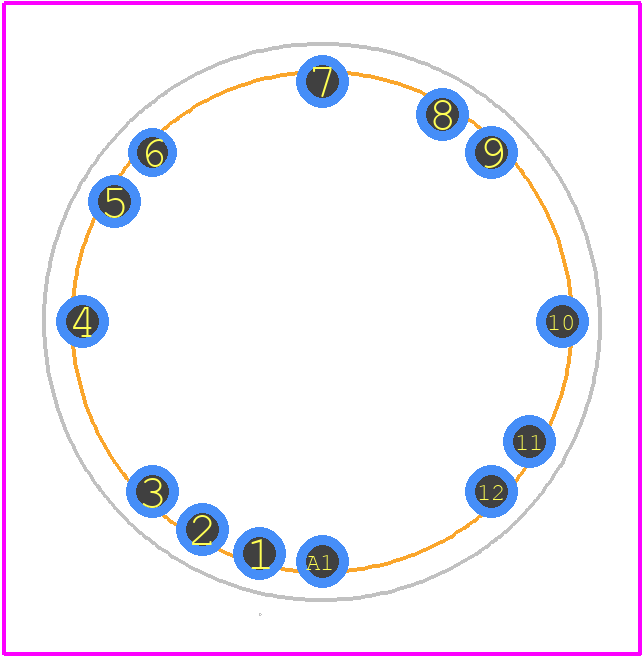

PCB Footprints

3D Models

MRK112-BA Details

The recommended operating temperature range for the MRK112-BA is -20°C to 70°C.
Yes, the MRK112-BA is designed to withstand high-vibration environments and is suitable for use in applications where vibration is a concern.
The maximum switching frequency for the MRK112-BA is 20 operations per minute.
Yes, the MRK112-BA is designed to be compatible with PCB washing and cleaning processes, but it's recommended to follow the manufacturer's guidelines for cleaning and drying to prevent damage.
The expected lifespan of the MRK112-BA switch is 10,000 to 20,000 operations, depending on the operating conditions and usage.

Expert Contribution

System Verified

Community Approved

Use the download button to access the MRK112-BA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MRK11, or try a keyword search, such as Rotary Switches
