MS-12AAH1 - NKK Switches

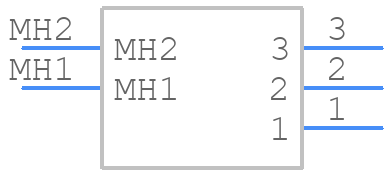

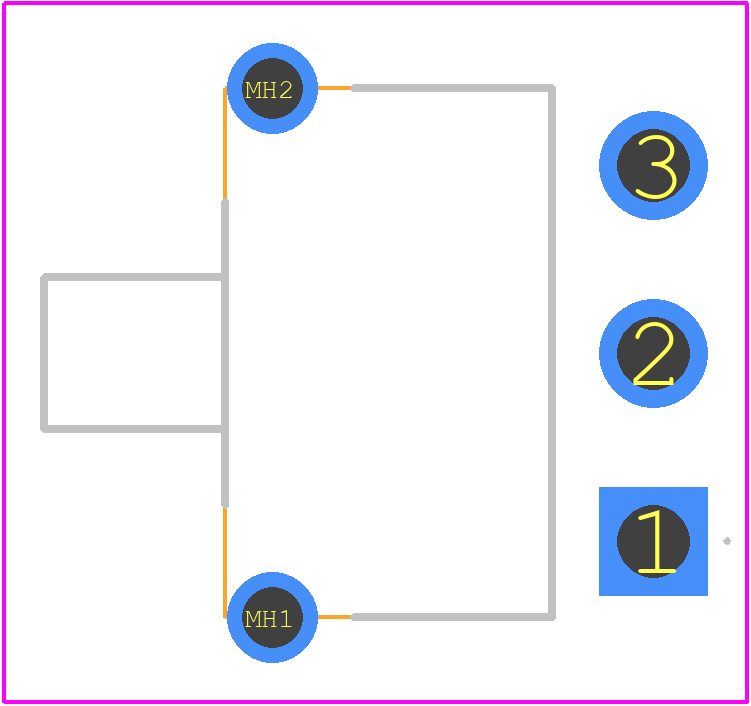

MS-12AAH1 Details

• Manufacturer Part Number:

  MS-12AAH1

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.50

• Manufacturer:

  NKK Switches

• YTEOL:

  0

• Actuator Length:

  0.201 inch

• Actuator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTHALATE

• Actuator Type:

  KNOB TYPE

• Additional Feature:

  STANDARD: UL 94V-0

• Body Breadth:

  7.1 mm

• Body Color:

  BLACK

• Body Height:

  10.765 mm

• Body Length or Diameter:

  13.6 mm

• Center Contact Material:

  SILVER ALLOY

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  6A@125VAC

• Contact Current(AC)-Max:

  6 A

• Contact Function:

  ON-ON

• Contact Resistance:

  0.01 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(AC)-Max:

  125 V

• Dielectric Withstand Volts:

  1000VAC V

• Electrical Life:

  25000 Cycle(s)

• End Contact Material:

  SILVER ALLOY

• End Contact Plating:

  SILVER

• Housing Material:

  STAINLESS STEEL

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  GLASS FILLED DIALLYL PHTHALATE

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Number of Positions:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• PCB Hole Count:

  5

• Sealing:

  EPOXY TERMINAL SEALED

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPDT

• Switch Type:

  SLIDE SWITCH

• Terminal Length:

  0.126 inch

• Termination Type:

  SOLDER
