MS-N12B1A - NKK Switches

Description: MS-N12B1A is a compact, RoHS-compliant SPDT non-illuminated slide switch (ON-ON) with silver contacts, 3A 125V AC / 2A 250V AC rating, bracket-mount PCB terminals, -30 °C to +85 °C operating range, and 8.3×6.6×15.8 mm body dimensions.

Download MS-N12B1A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

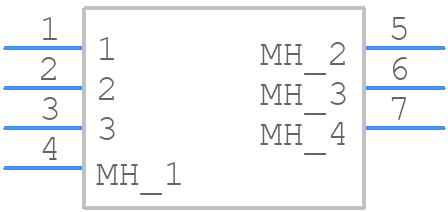

MS-N12B1A - NKK Switches - PCB symbol
click to zoom
PCB Footprints

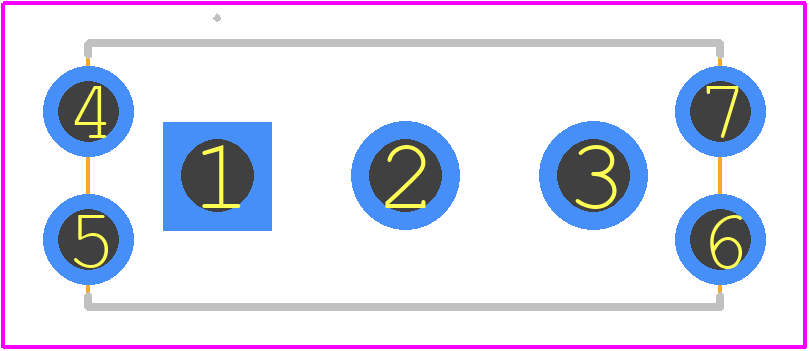

MS-N12B1A - NKK Switches PCB footprint - Other - Other - MS-N12B1A-4
