MS0850506F020V2A - E-Switch

Description: Basic / Snap Action Switches 5A 125/250VAC SPDT Left Angle PCB Pin -25°C ~ 85°C

Download MS0850506F020V2A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MS0850506F020V2A - E-Switch - PCB symbol
click to zoom
PCB Footprints

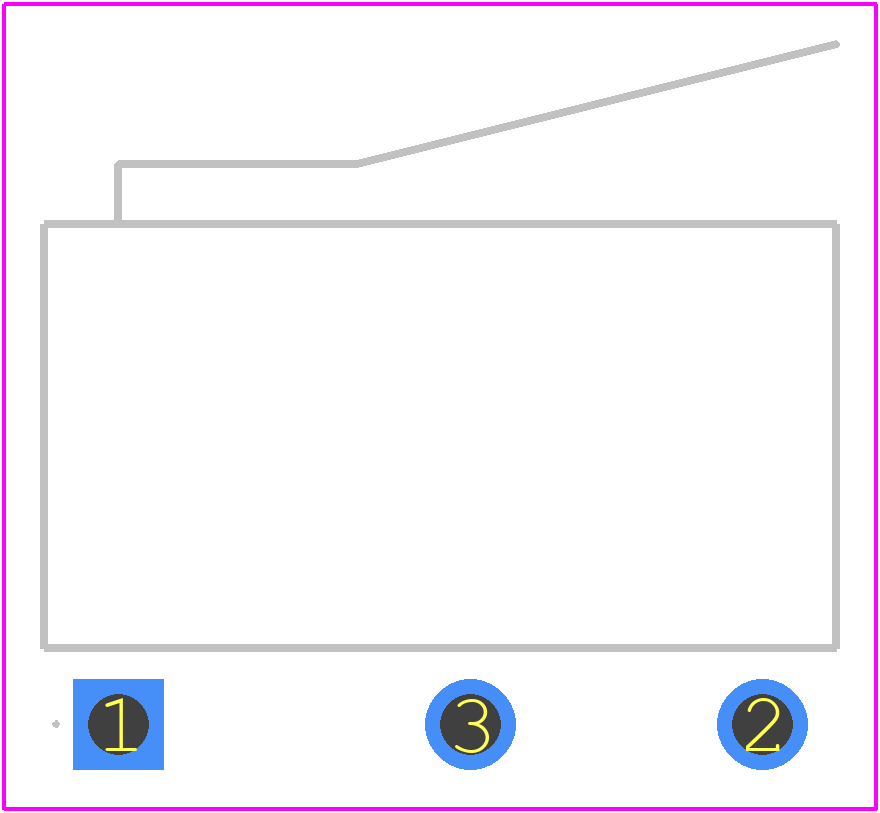

MS0850506F020V2A - E-Switch PCB footprint - Other - Other - MS0850506F020V2A-1
click to zoom
3D Models
MS0850506F020V2A - E-Switch - 3D model - Other - MS0850506F020V2A-1
click to zoom

MS0850506F020V2A Details

  • Manufacturer Part Number:

    MS0850506F020V2A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    E-Switch Inc

  • YTEOL:

    8

  • Actuator Length:

    0.571 inch

  • Actuator Type:

    LEAF LEVER

  • Body Breadth:

    6.4008 mm

  • Body Height:

    13.8938 mm

  • Body Length or Diameter:

    19.812 mm

  • Center Contact Plating:

    SILVER

  • Contact (AC) Max Rating R Load:

    5A@250VAC

  • Contact Current(AC)-Max:

    5 A

  • Contact Resistance:

    0.1 mΩ

  • Contact Timing:

    SNAP ACTION

  • Contact Voltage(AC)-Max:

    250 V

  • Dielectric Withstand Volts:

    1000VAC V

  • Electrical Life:

    50000 Cycle(s)

  • End Contact Plating:

    SILVER

  • Housing Material:

    POLYBUTYLENE TEREPHTHALATE

  • Insulation Resistance:

    100000000 Ω

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Operating Force-Max:

    0.1974 N

  • Operating Position:

    0.547 inch

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • PCB Hole Count:

    5

  • Surface Mount:

    NO

  • Switch Function:

    SPDT

  • Switch Type:

    SNAP ACTING/LIMIT SWITCH

  • Terminal Length:

    0.15 inch

  • Terminal Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

MS0850506F020V2A Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 250°C (482°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the switch.
  • Yes, the switch is compatible with lead-free soldering. E-Switch Inc uses lead-free materials and processes to ensure RoHS compliance.
  • The MS0850506F020V2A switch is rated for a minimum of 10,000 actuations. However, the actual lifespan may vary depending on factors such as operating conditions, usage, and maintenance.
  • The switch is designed to withstand moderate vibration and shock. However, for extreme environments, it's recommended to consult with E-Switch Inc or perform additional testing to ensure the switch meets the specific requirements.
  • The switch has a rating of IP40, which means it provides protection against solid objects larger than 1 mm, but it's not designed for use in wet or humid environments. For such applications, consider using a switch with a higher IP rating or additional protection measures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MS0850506F020V2A Overview

Use the download button to access the MS0850506F020V2A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MS085, or try a keyword search, such as Snap Acting/Limit Switches
