MS23BNW03 - NKK Switches

MS23BNW03 Details

• Manufacturer Part Number:

  MS23BNW03

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.50

• Manufacturer:

  NKK Switches

• YTEOL:

  0

• Actuator Length:

  0.201 inch

• Actuator Type:

  SLIDE

• Body Breadth:

  11.4046 mm

• Body Height:

  19.05 mm

• Body Length or Diameter:

  12.7 mm

• Center Contact Material:

  SILVER

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  3A@250VAC

• Contact Current(AC)-Max:

  3 A

• Contact Function:

  ON-OFF-ON

• Contact Resistance:

  0.01 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(AC)-Max:

  250 V

• Dielectric Withstand Volts:

  1500VAC V

• Electrical Life:

  25000 Cycle(s)

• End Contact Material:

  SILVER

• End Contact Plating:

  SILVER

• Housing Material:

  STAINLESS STEEL

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  GLASS FILLED DIALLYL PHTHALATE

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Positions:

  2

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -10 °C

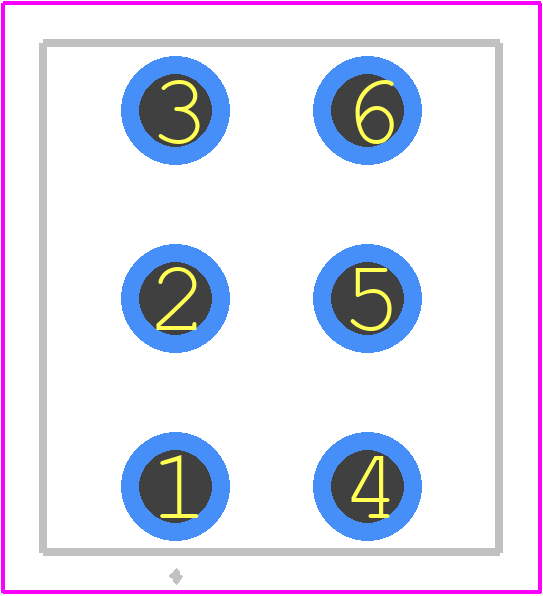

• PCB Hole Count:

  6

• Sealing:

  EPOXY TERMINAL SEALED

• Solderability:

  WAVE

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  DPDT

• Switch Type:

  SLIDE SWITCH

• Terminal Length:

  0.25 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
