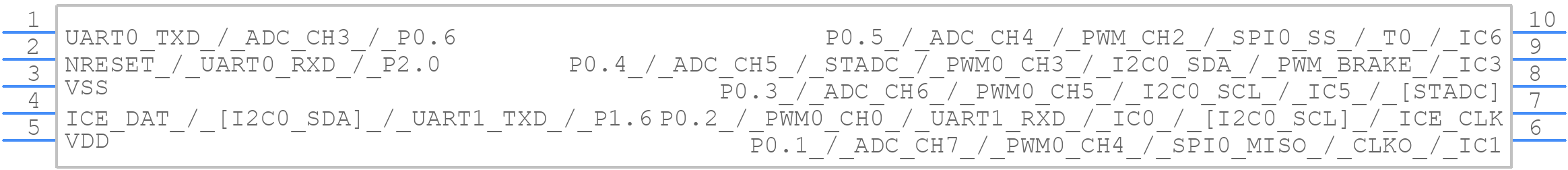

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MS51BA9AE
- Part Number MS51BA9AE
- Manufacturer Nuvoton
- Pin Count 10
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - MSOP -10
- Released Date Jan 22, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MS51BA9AE Details
-
Manufacturer Part Number:
MS51BA9AE
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Nuvoton Technology Corp
-
YTEOL:
8
-
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER
MS51BA9AE Frequently Asked Questions (FAQs)
-
The MS51BA9AE can operate in a temperature range of -40°C to 85°C.
-
The clock source for the MS51BA9AE can be configured using the Clock Control Register (CLKCTL). The clock source can be set to either the internal RC oscillator, external crystal oscillator, or external clock source.
-
The maximum frequency for the UART baud rate in the MS51BA9AE is 115200 bps.
-
The MS51BA9AE has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WDTCTL). The watchdog timer can be set to reset the microcontroller if it does not receive a reset signal within a specified time period.
-
The maximum current consumption of the MS51BA9AE is 15mA at 5V and 10MHz.
Trust Checks
System Verified
MS51BA9AE Overview
Use the download button to access the MS51BA9AE schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MS51B,
or try a keyword search, such as Microcontrollers
