MS51FB9AE - Nuvoton

Description: MCU 8-bit 8051 CISC 16KB Flash 3.3V/5V 20-Pin TSSOP Bag

Download MS51FB9AE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

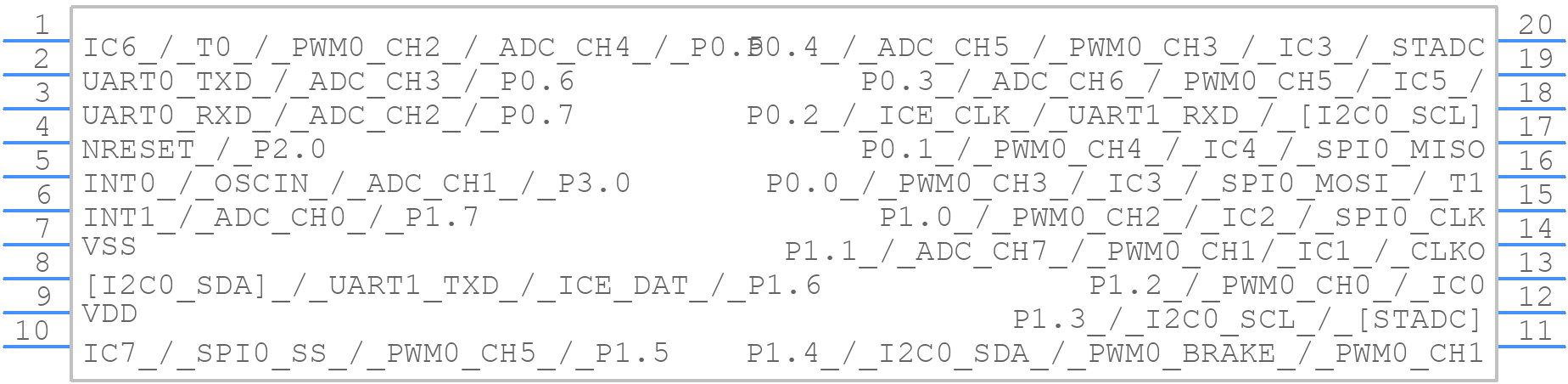

MS51FB9AE - Nuvoton - PCB symbol
click to zoom
PCB Footprints
MS51FB9AE - Nuvoton PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP20
click to zoom
3D Models
MS51FB9AE - Nuvoton - 3D model - Small Outline Packages - TSSOP20
click to zoom

MS51FB9AE Details

  • Manufacturer Part Number:

    MS51FB9AE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Nuvoton Technology Corp

  • YTEOL:

    8

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

MS51FB9AE Frequently Asked Questions (FAQs)

  • The MS51FB9AE can operate in a temperature range of -40°C to 85°C.
  • The clock source for the MS51FB9AE can be configured using the Clock Control Register (CKCON). The clock source can be set to either the internal RC oscillator, external crystal oscillator, or external clock source.
  • The maximum frequency for the UART baud rate in the MS51FB9AE is 115200 bps.
  • The MS51FB9AE has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WDTCR). The watchdog timer can be set to reset the microcontroller if it does not receive a reset signal within a specified time period.
  • The maximum current consumption of the MS51FB9AE is 15mA at 5V and 20MHz operating frequency.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MS51FB9AE Overview

Use the download button to access the MS51FB9AE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MS51F, or try a keyword search, such as Microcontrollers
