- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MS51TC0AE
- Part Number MS51TC0AE
- Manufacturer Nuvoton
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN 33L (4X4x0.8 mm Pitch:0.40 mm)
- Released Date Aug 18, 2022
- Last Modified Date Jan 17, 2024 12:00 PM UTC
- Pinout / Pin List Click Here (Member Only)
MS51TC0AE Details
-
Manufacturer Part Number:
MS51TC0AE
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Nuvoton Technology Corp
-
YTEOL:
8
-
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER
MS51TC0AE Frequently Asked Questions (FAQs)
-
The maximum clock frequency for the MS51TC0AE is 24 MHz, but it can be overclocked to 30 MHz with careful consideration of power consumption and thermal management.
-
The WDT on the MS51TC0AE can be configured using the WDTCR register. Set the WDTEN bit to enable the WDT, and then set the WDTPS bits to select the timeout period (from 16ms to 2048ms).
-
The MS51TC0AE is designed to operate at 3.3V, but it can tolerate a maximum voltage of 3.6V. Using a 5V power supply is not recommended and may damage the device.
-
Nuvoton provides a UART bootloader example code in their software development kit (SDK). You can modify the code to suit your specific requirements. Additionally, you can use third-party libraries like the UART bootloader from Keil.
-
The maximum current rating for the I/O pins on the MS51TC0AE is 20mA per pin. However, the total current consumption should not exceed 100mA for the entire device.
Trust Checks
Expert Contribution
System Verified
Community Approved
MS51TC0AE Overview

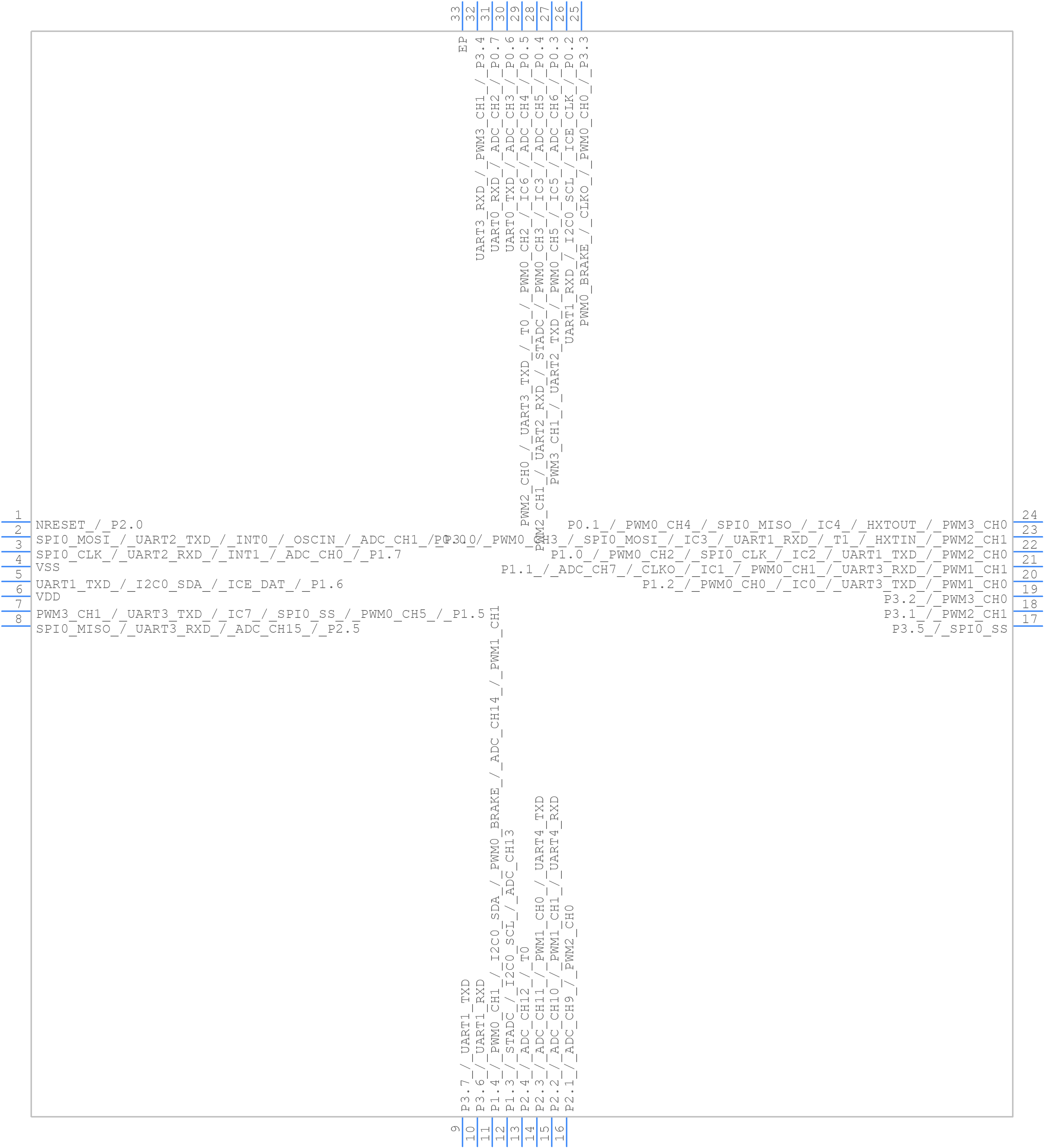

Use the download button to access the MS51TC0AE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MS51T,
or try a keyword search, such as Microcontrollers
