Part Image

MS580301BA01-00 - TE Connectivity

Description: Dimensions: Dimensions 6.2 x 6.4 MM | Dimensions .24 x .25 INCH | Electrical Characteristics: Board Level Pressure Sensor Supply Voltage 1.8 – 3.6 V | Operation/Application: Resolution .012 | Board Level Pressure Sensor Accuracy ±2.5mbar | Pressure 1000 MBAR | Output/Span 24 bit ADC | Other: Sensor Options No Option | Packaging Features: Board Level Pressure Sensor Package Surface Mountable | Product Type Features: Board Level Pressure Sensor Type Digital Pressure and Altimeter Sensor Modules | Board Lev

Download MS580301BA01-00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

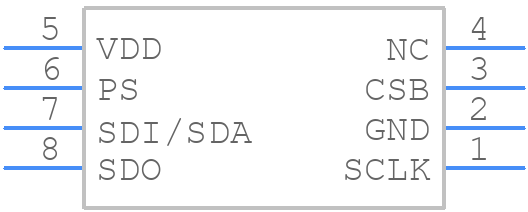

Symbol
MS580301BA01-00 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
MS580301BA01-00 - TE Connectivity PCB footprint - Other - Other - MS580305BA
click to zoom
3D Models
MS580301BA01-00 - TE Connectivity - 3D model - Other - MS580305BA
click to zoom

MS580301BA01-00 Details

  • Manufacturer Part Number:

    MS580301BA01-00

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-11-30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Accuracy-Max (%):

    2.5%

  • Body Breadth:

    6.2 mm

  • Body Height:

    6.4 mm

  • Body Length or Diameter:

    6.2 mm

  • Housing:

    STAINLESS STEEL

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C/SPI

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Pressure Range-Max:

    15.95415 Psi

  • Pressure Range-Min:

    4.35113 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Response Time:

    8220 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR, MEMS, PIEZORESISTIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MS580301BA01-00 Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the TE Connectivity application note AN-20, which provides guidelines for designing a reliable and efficient PCB layout for the MS580301BA01-00.
  • The MS580301BA01-00 is calibrated by the manufacturer, but users can perform a one-point calibration to adjust the sensor's output to their specific application. The calibration process involves applying a known pressure and adjusting the sensor's output to match the expected value.
  • The recommended power-up sequence is to apply VCC first, followed by VLOGIC. This ensures that the internal voltage regulators are powered up correctly and prevents any potential damage to the device.
  • The MS580301BA01-00's digital output is a 24-bit SPI interface. Users should ensure that their microcontroller is configured to communicate with the sensor using the correct SPI mode, clock frequency, and data format.
  • The MS580301BA01-00 is rated for operation from -20°C to 85°C. However, the sensor's accuracy and performance may degrade at extreme temperatures. Users should consult the datasheet for more information on temperature-related specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
