MS580302BA01-00 - TE Connectivity

Description: Dimensions: Dimensions 6.2 x 6.4 MM | Dimensions .24 x .25 INCH | Electrical Characteristics: Board Level Pressure Sensor Supply Voltage 1.8 – 3.6 V | Operation/Application: Resolution .024 | Pressure 2000 MBAR | Board Level Pressure Sensor Accuracy ±2.5mbar | Output/Span 24 bit ADC | Other: Sensor Options No Option | Packaging Features: Board Level Pressure Sensor Package Surface Mountable | Product Type Features: Board Level Pressure Sensor Type Digital Pressure and Altimeter Sensor Modules | Board Lev

Download MS580302BA01-00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

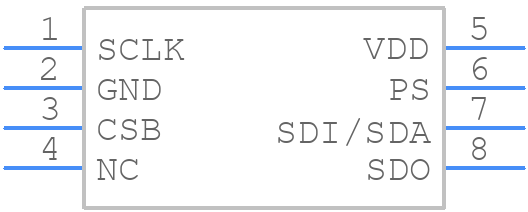

Symbol
MS580302BA01-00 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
MS580302BA01-00 - TE Connectivity PCB footprint - Other - Other - MS580302BA01-00
click to zoom
3D Models
MS580302BA01-00 - TE Connectivity - 3D model - Other - MS580302BA01-00
click to zoom

MS580302BA01-00 Details

  • Manufacturer Part Number:

    MS580302BA01-00

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Accuracy-Max (%):

    2.5%

  • Body Breadth:

    6.2 mm

  • Body Height:

    6.4 mm

  • Body Length or Diameter:

    6.2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    24

  • Operating Current-Max:

    0.0125 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C/SPI

  • Output Type:

    DIGITAL OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Pressure Range-Max:

    15.95 Psi

  • Pressure Range-Min:

    0.145 Psi

  • Response Time:

    8220 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MS580302BA01-00 Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the TE Connectivity application note AN-20, which provides guidelines for designing a reliable and efficient PCB layout for the MS580302BA01-00.
  • The MS580302BA01-00 is a calibrated device and does not require additional calibration. However, if you need to perform a system-level calibration, you can use the sensor's internal calibration coefficients and follow the calibration procedure outlined in the datasheet.
  • The MS580302BA01-00 is rated for operation from -40°C to 85°C. However, the sensor's accuracy and performance may degrade at extreme temperatures. It's recommended to consult the datasheet and application notes for more information on temperature-related performance.
  • The MS580302BA01-00 is not designed for use in humid or wet environments. It's recommended to use the sensor in a dry, clean environment to ensure reliable operation and prevent damage.
  • The recommended power supply voltage for the MS580302BA01-00 is 1.8V to 3.6V, and the typical current consumption is 1.5mA. However, it's recommended to consult the datasheet for more information on power supply requirements and limitations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MS580302BA01-00 Overview

Use the download button to access the MS580302BA01-00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MS580, or try a keyword search, such as Pressure Sensors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
