MS580314BA01-00 - TE Connectivity

Description: Dimensions: Dimensions 6.2 x 6.4 MM | Dimensions .24 x .25 INCH | Electrical Characteristics: Board Level Pressure Sensor Supply Voltage 1.8 – 3.6 V | Operation/Application: Resolution .04 | Pressure 14000 MBAR | Output/Span 24 bit ADC | Board Level Pressure Sensor Accuracy -200 to +100mbar | Other: Sensor Options No Option | Packaging Features: Board Level Pressure Sensor Package Surface Mountable | Product Type Features: Board Level Pressure Sensor Style Absolute | Board Level Pressure Sensor Type Digit

Download MS580314BA01-00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

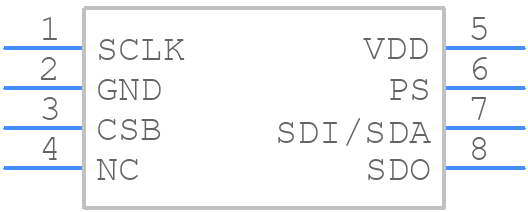

Symbol
MS580314BA01-00 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
MS580314BA01-00 - TE Connectivity PCB footprint - Other - Other - MS580314BA01-00-3
click to zoom
3D Models
MS580314BA01-00 - TE Connectivity - 3D model - Other - MS580314BA01-00-3
click to zoom

MS580314BA01-00 Details

  • Manufacturer Part Number:

    MS580314BA01-00

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-8

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Body Breadth:

    6.2 mm

  • Body Height:

    6.4 mm

  • Body Length or Diameter:

    6.2 mm

  • Housing:

    STAINLESS STEEL

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C/SPI

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Pressure Range-Max:

    203.053 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Response Time:

    8220 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MS580314BA01-00 Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the TE Connectivity application note AN-20, which provides guidelines for designing a reliable and efficient PCB layout for the MS580314BA01-00.
  • The MS580314BA01-00 is a calibrated sensor, and no additional calibration is required. However, if you need to perform a system-level calibration, you can use the sensor's internal calibration coefficients and follow the calibration procedure outlined in the datasheet.
  • The MS580314BA01-00 is rated for operation from -40°C to 85°C. However, the sensor's accuracy and stability may be affected at extreme temperatures. It's recommended to consult the datasheet and application notes for more information on temperature-related performance.
  • The MS580314BA01-00 is not designed for use in humid or wet environments. The sensor is sensitive to moisture, and exposure to high humidity or water can affect its performance and reliability. If you need to use the sensor in a humid environment, consider using a protective coating or enclosure to prevent moisture ingress.
  • The recommended power supply voltage for the MS580314BA01-00 is 1.8V to 3.6V, and the typical current consumption is 1.5mA. However, the actual power consumption may vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MS580314BA01-00 Overview

Use the download button to access the MS580314BA01-00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MS580, or try a keyword search, such as Pressure Sensors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
