Part Image

MS580330BA01-00 - TE Connectivity

Description: Dimensions: Dimensions .24 x .25 INCH | Dimensions 6.2 x 6.4 MM | Electrical Characteristics: Board Level Pressure Sensor Supply Voltage 1.8 – 3.6 V | Operation/Application: Board Level Pressure Sensor Accuracy ±400mbar | Resolution .5 | Output/Span 24 bit ADC | Pressure 30000 MBAR | Other: Sensor Options No Option | Packaging Features: Board Level Pressure Sensor Package Surface Mountable | Product Type Features: Board Level Pressure Sensor Type Digital Pressure and Altimeter Sensor Modules | Board Leve

Download MS580330BA01-00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

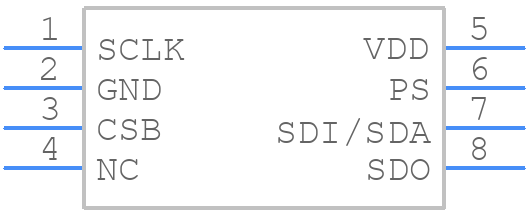

MS580330BA01-00 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
MS580330BA01-00 - TE Connectivity PCB footprint - Other - Other - MS580330BA01-00-3
click to zoom
3D Models
MS580330BA01-00 - TE Connectivity - 3D model - Other - MS580330BA01-00-3
click to zoom

MS580330BA01-00 Details

  • Manufacturer Part Number:

    MS580330BA01-00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Accuracy-Max (%):

    400%

  • Additional Feature:

    IT ALSO HAVE SPI INTERFACE

  • Body Breadth:

    6.2 mm

  • Body Height:

    6.4 mm

  • Body Length or Diameter:

    6.2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    24

  • Operating Current-Max:

    0.0125 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C INTERFACE

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Pressure Range-Max:

    435.11 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Response Time:

    8220 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MS580330BA01-00 Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the TE Connectivity application note AN-20, which provides guidelines for designing a reliable and efficient PCB layout for the MS580330BA01-00.
  • The MS580330BA01-00 is a calibrated sensor, and no additional calibration is required. However, if you need to perform a system-level calibration, you can use the sensor's internal calibration coefficients and follow the calibration procedure outlined in the datasheet.
  • The MS580330BA01-00 is rated for operation from -40°C to 125°C, but the maximum operating temperature range may vary depending on the specific application and environmental conditions. It's recommended to consult the datasheet and application notes for more information.
  • The MS580330BA01-00 is not designed for use in humid or wet environments. It's recommended to use the sensor in a dry, clean environment to ensure reliable operation and to prevent damage to the sensor.
  • The recommended power supply voltage for the MS580330BA01-00 is 1.8V to 3.6V, with a typical operating voltage of 3.3V. It's recommended to consult the datasheet for more information on power supply requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MS580330BA01-00 Overview

Use the download button to access the MS580330BA01-00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MS580, or try a keyword search, such as Pressure Sensors
