MSCSM70TAM10CTPAG - Microchip

Description: Mosfet Array 6 N-Channel (3-Phase Bridge) 700V 238A (Tc) 674W (Tc) Chassis Mount SP6-P

Download MSCSM70TAM10CTPAG Model

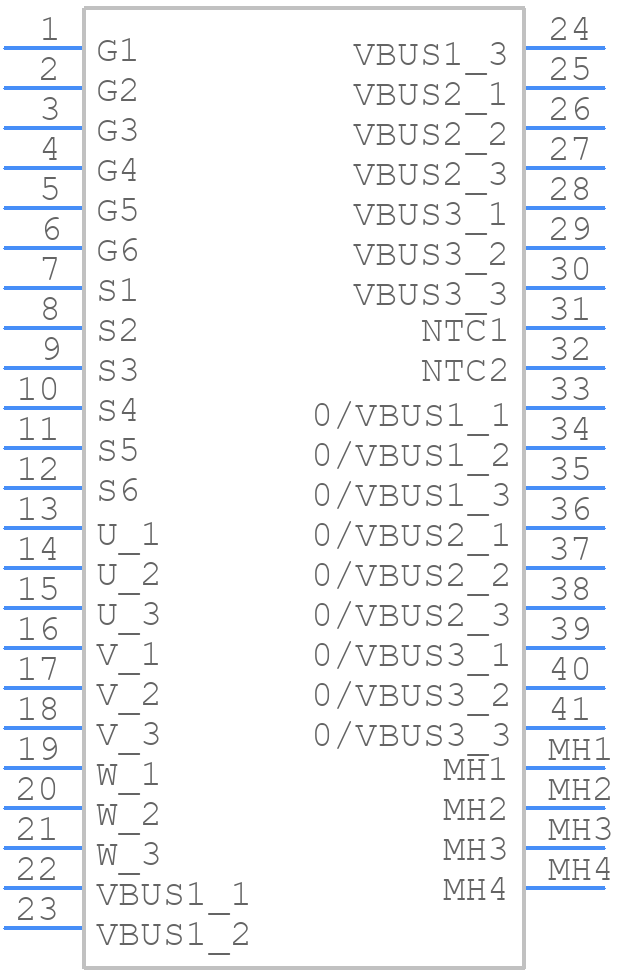

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

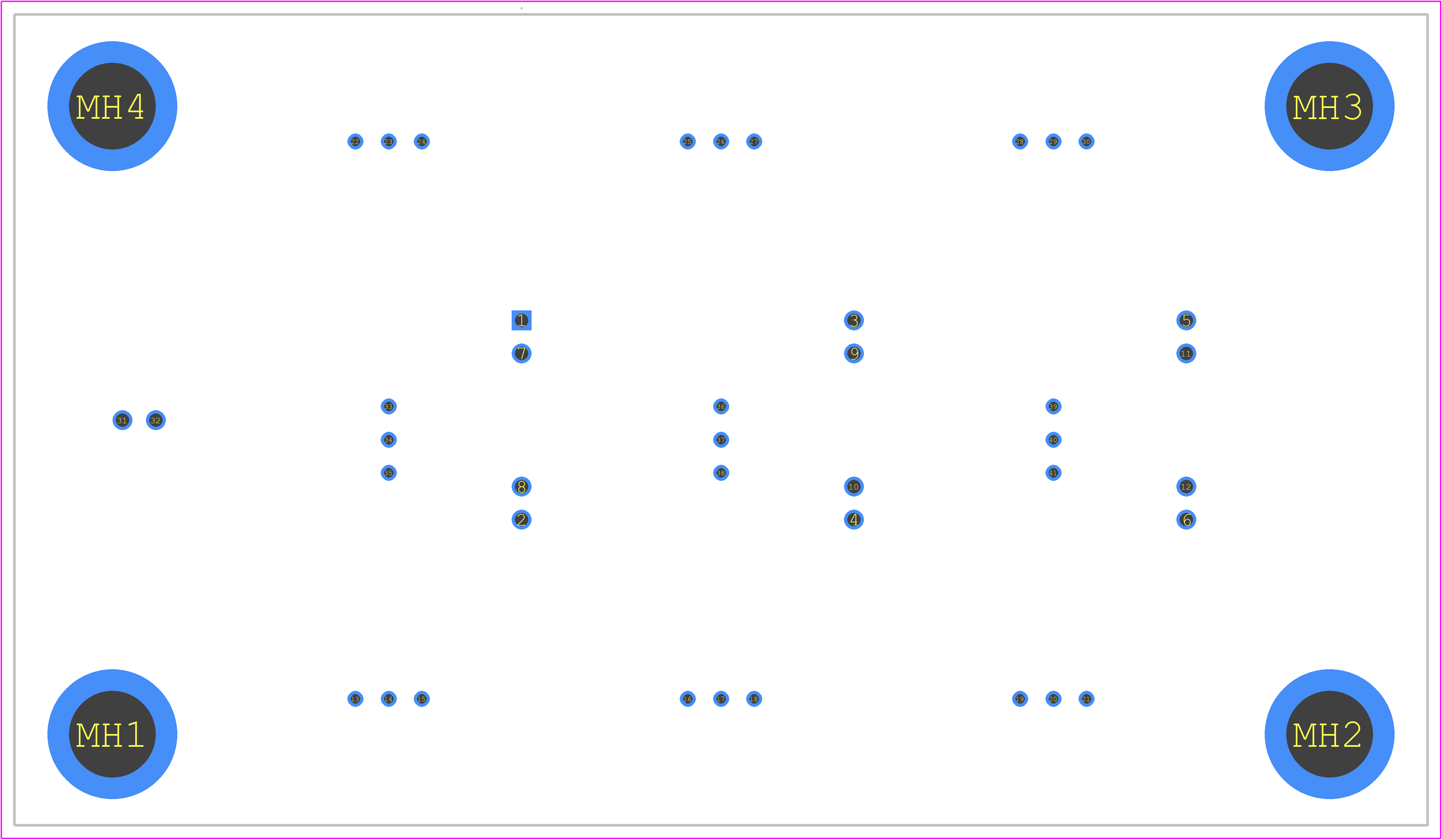

MSCSM70TAM10CTPAG - Microchip PCB footprint - Other - Other - MSCSM70TAM10CTPAG-5
click to zoom
3D Models
MSCSM70TAM10CTPAG - Microchip  - 3D model - Other - MSCSM70TAM10CTPAG-5
click to zoom

MSCSM70TAM10CTPAG Details

  • Manufacturer Part Number:

    MSCSM70TAM10CTPAG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-23

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.50.00.80

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Case Connection:

    ISOLATED

  • Configuration:

    3 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND THERMISTOR

  • DS Breakdown Voltage-Min:

    700 V

  • Drain Current-Max (ID):

    238 A

  • Drain-source On Resistance-Max:

    0.0095 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    58 pF

  • JESD-30 Code:

    R-XUFM-X23

  • Number of Elements:

    6

  • Number of Terminals:

    23

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    476 A

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

MSCSM70TAM10CTPAG Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for MSCSM70TAM10CTPAG is -40°C to +125°C.
  • The power-up sequence for MSCSM70TAM10CTPAG should follow the recommended sequence in the datasheet: VDD, VCC, and then VBAT. Ensure that VDD and VCC are powered up simultaneously, and VBAT is powered up last.
  • The maximum allowed voltage on the VBAT pin is 3.6V. Exceeding this voltage may damage the device.
  • To configure the MSCSM70TAM10CTPAG for low-power mode, set the Power Mode Control (PMC) register to the desired low-power mode. Additionally, ensure that the clock frequency is reduced, and unnecessary peripherals are disabled.
  • The typical current consumption of MSCSM70TAM10CTPAG in active mode is around 1.5mA, depending on the clock frequency and peripheral usage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MSCSM70TAM10CTPAG Overview

Use the download button to access the MSCSM70TAM10CTPAG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSCSM, or try a keyword search, such as Power Field-Effect Transistors
