- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MSJP06N80A-BP
- Part Number MSJP06N80A-BP
- Manufacturer MCC
- Pin Count 3
- Part Category MOSFET (N-Channel)
- Package Category Transistor Outline, Vertical

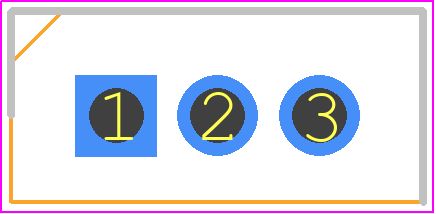

- Footprint Name Transistor Outline, Vertical - MSJP06N80A-BP*
- Released Date Jan 1, 2024
- Last Modified Date May 17, 2024 4:34 PM UTC
- Pinout / Pin List Click Here (Member Only)
MSJP06N80A-BP Details
-
Manufacturer Part Number:
MSJP06N80A-BP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
Manufacturer:
Micro Commercial Components
-
DS Breakdown Voltage-Min:
800 V
-
Drain Current-Max (ID):
6 A
-
Packing Method:
BULK
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MSJP06N80A-BP Overview
Use the download button to access the MSJP06N80A-BP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSJP0,
or try a keyword search, such as Power Field-Effect Transistors
