MSJU11N65A-TP - MCC

Description: N-Channel 650 V 11A 83.3W (Tc) Surface Mount TO-252 (DPAK)

Download MSJU11N65A-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MSJU11N65A-TP - MCC - PCB symbol
click to zoom
PCB Footprints

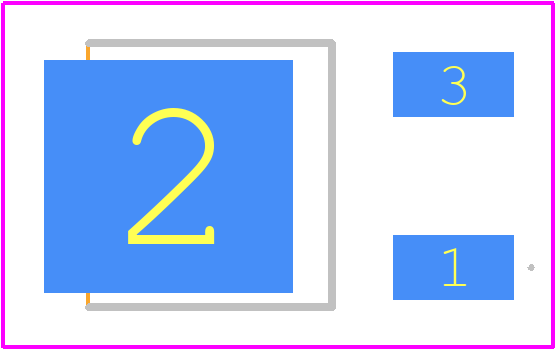

MSJU11N65A-TP - MCC PCB footprint - Other - Other - MSJU11N65A-TP-1
click to zoom
3D Models
MSJU11N65A-TP - MCC - 3D model - Other - MSJU11N65A-TP-1
click to zoom

MSJU11N65A-TP Details

  • Manufacturer Part Number:

    MSJU11N65A-TP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Micro Commercial Components

  • DS Breakdown Voltage-Min:

    650 V

  • Drain Current-Max (ID):

    11 A

  • Moisture Sensitivity Level:

    1

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    10

MSJU11N65A-TP Frequently Asked Questions (FAQs)

  • The thermal resistance of the MSJU11N65A-TP is typically around 2.5°C/W (junction-to-ambient) and 1.5°C/W (junction-to-case). However, this value can vary depending on the specific application and cooling conditions.
  • Yes, the MSJU11N65A-TP is designed to meet the requirements of high-reliability applications, such as aerospace, defense, and medical devices. It is built with high-quality materials and undergoes rigorous testing to ensure its performance and reliability.
  • The recommended operating temperature range for the MSJU11N65A-TP is -55°C to 150°C. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
  • Yes, the MSJU11N65A-TP is compatible with lead-free soldering processes. It is designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and is suitable for use in lead-free assembly processes.
  • The typical turn-on and turn-off time for the MSJU11N65A-TP is around 10-20 ns. However, this value can vary depending on the specific application, gate drive, and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MSJU11N65A-TP Overview

Use the download button to access the MSJU11N65A-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSJU1, or try a keyword search, such as Power Field-Effect Transistors
