MSL0104RGBW1 - ROHM Semiconductor

Description: Side View RGB Chip LED SMT 6922(2709)

Download MSL0104RGBW1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

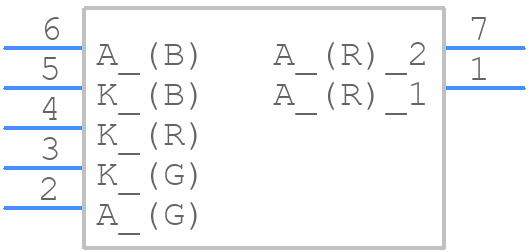

MSL0104RGBW1 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
MSL0104RGBW1 - ROHM Semiconductor PCB footprint - Other - Other - MSL0104RGBW1
click to zoom
3D Models
MSL0104RGBW1 - ROHM Semiconductor - 3D model - Other - MSL0104RGBW1
click to zoom

MSL0104RGBW1 Details

  • Manufacturer Part Number:

    MSL0104RGBW1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Mainland China, Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6

  • Color:

    RED/GREEN/BLUE

  • Configuration:

    SEPARATE, 3 ELEMENTS WITH BUILT-IN ZENER DIODE

  • Forward Current-Max:

    0.04 A

  • Forward Voltage-Max:

    2.5 V

  • Luminous Intensity-Nom:

    700.0/1200.0/400.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIPLE COLOR LED

  • Overall Height:

    2.15 mm

  • Packing Method:

    TR, 7 INCH

  • Reverse Voltage-Max:

    5 V

  • Shape:

    RECTANGULAR

  • Size:

    5.4 mm

  • Surface Mount:

    YES

MSL0104RGBW1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the MSL0104RGBW1 is -40°C to 85°C.
  • To ensure reliability in high-humidity environments, it is recommended to use a moisture-proof coating or conformal coating on the device, and to follow proper storage and handling procedures.
  • The maximum current rating for each color channel of the MSL0104RGBW1 is 30mA.
  • Yes, the MSL0104RGBW1 is AEC-Q102 qualified, making it suitable for use in automotive applications.
  • To achieve optimal brightness and color accuracy, it is recommended to use a constant current driver and to follow the recommended drive current and voltage levels specified in the datasheet.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MSL0104RGBW1 Overview

Use the download button to access the MSL0104RGBW1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSL01, or try a keyword search, such as Visible LEDs
