MSLPT5252AG2TR - TE Connectivity

Description: Body Features: Actuator Material Polytetrafluoroethylene | Actuator Force 100 G | Actuator Force 3.52 OZ | Product Orientation Vertical | Case Material Thermoplastic | Case Color Black | Actuator Profile Flush | Configuration Features: Configuration (Pole-Throw) Single Pole - Single Throw | Switch Feedback Type Tactile | ESD Grounding Terminal With | Ganged Without | Operating Function NO | Number of Actuators Single | Contact Features: Switch Contact Plating Material Silver | Contact Base Material Stainles

Download MSLPT5252AG2TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

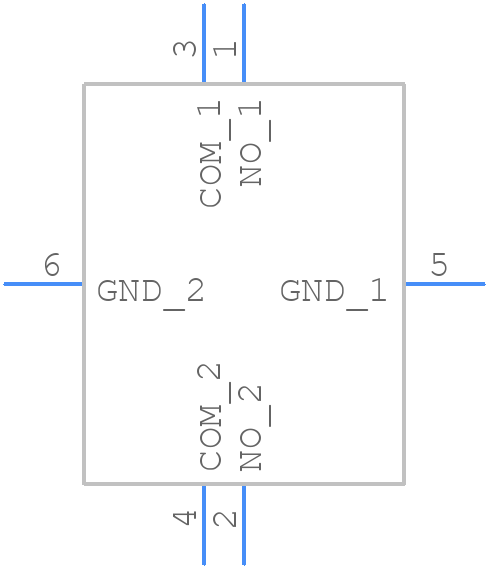

Symbol
MSLPT5252AG2TR - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
MSLPT5252AG2TR - TE Connectivity PCB footprint - Other - Other - MSLPT5252AG2TR-1
click to zoom
3D Models
MSLPT5252AG2TR - TE Connectivity - 3D model - Other - MSLPT5252AG2TR-1
click to zoom

MSLPT5252AG2TR Details

  • Manufacturer Part Number:

    MSLPT5252AG2TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.40

  • Factory Lead Time:

    6 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Actuator Material:

    POLYTETRA FLUOROETHYLENE

  • Actuator Travel:

    0.25 mm

  • Actuator Type:

    FLUSH TOP TYPE

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    5.2 mm

  • Body Color:

    BLACK

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    5.2 mm

  • Center Contact Material:

    STAINLESS STEEL

  • Center Contact Plating:

    SILVER

  • Circuit Configuration:

    1X1

  • Contact Current(AC)-Max:

    0.05 A

  • Contact Current(DC)-Max:

    0.05 A

  • Contact (DC) Max Rating R Load:

    0.05A@12VDC

  • Contact Resistance:

    0.1 mΩ

  • Contact Voltage(DC)-Max:

    12 V

  • Dielectric Withstand Volts:

    250VAC V

  • Electrical Life:

    1000000 Cycle(s)

  • End Contact Material:

    STAINLESS STEEL

  • End Contact Plating:

    SILVER OVER NICKEL

  • Housing Material:

    POLYETHYLENE

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    THERMOPLASTIC

  • Mounting Feature:

    PANEL MOUNT

  • Number of Switches:

    1

  • Operating Force-Max:

    0.98 N

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Packing Method:

    TR

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    SPST

  • Switch Type:

    KEYPAD SWITCH

  • Terminal Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

MSLPT5252AG2TR Frequently Asked Questions (FAQs)

  • TE Connectivity provides a recommended PCB layout and land pattern in their application note AN-1043, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
  • The MSLPT5252AG2TR has a high power density, so thermal management is crucial. Ensure good airflow around the device, use a heat sink if possible, and follow the recommended PCB layout and thermal pad connection to minimize thermal resistance.
  • The MSLPT5252AG2TR has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (Tj) should not exceed 150°C. It's essential to ensure the device operates within this range to prevent damage or degradation.
  • Yes, the MSLPT5252AG2TR is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB.
  • Store the MSLPT5252AG2TR in a dry, cool place, away from direct sunlight and moisture. Handle the devices by the body, not the leads, to prevent damage. Follow ESD precautions when handling the devices to prevent electrostatic discharge damage.
