MSLPT5252AG3TR - TE Connectivity

Description: 50 mA Tactile Switch, Flush, Top Actuator, NO, Stainless Steel, Silver Contact Plating, Low Profile, 12 VDC, ALCOSWITCH LPT

Download MSLPT5252AG3TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

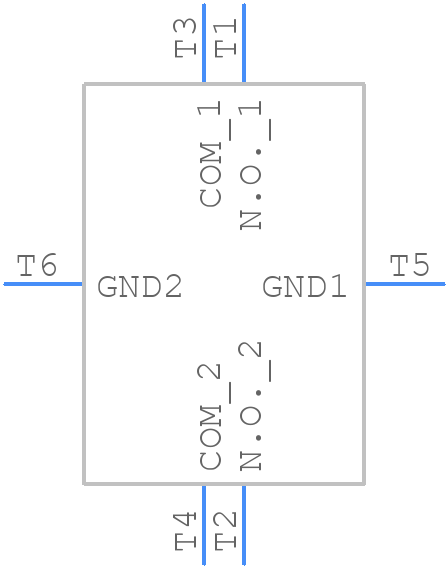

Symbol
MSLPT5252AG3TR - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
MSLPT5252AG3TR - TE Connectivity PCB footprint - Other - Other - MSLPT5252AG3TR-1
click to zoom
3D Models
MSLPT5252AG3TR - TE Connectivity - 3D model - Other - MSLPT5252AG3TR-1
click to zoom

MSLPT5252AG3TR Details

  • Manufacturer Part Number:

    MSLPT5252AG3TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.40

  • Factory Lead Time:

    6 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Actuator Material:

    POLYTETRA FLUOROETHYLENE

  • Actuator Travel:

    0.25 mm

  • Actuator Type:

    FLUSH TOP TYPE

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    5.2 mm

  • Body Color:

    BLACK

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    5.2 mm

  • Center Contact Material:

    STAINLESS STEEL

  • Center Contact Plating:

    SILVER

  • Circuit Configuration:

    1X1

  • Contact Current(AC)-Max:

    0.05 A

  • Contact Current(DC)-Max:

    0.05 A

  • Contact (DC) Max Rating R Load:

    0.05A@12VDC

  • Contact Resistance:

    0.1 mΩ

  • Contact Voltage(DC)-Max:

    12 V

  • Dielectric Withstand Volts:

    250VAC V

  • Electrical Life:

    1000000 Cycle(s)

  • End Contact Material:

    STAINLESS STEEL

  • End Contact Plating:

    SILVER OVER NICKEL

  • Housing Material:

    POLYETHYLENE

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    THERMOPLASTIC

  • Mounting Feature:

    PANEL MOUNT

  • Number of Switches:

    1

  • Operating Force-Max:

    1.568 N

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Packing Method:

    TR

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    SPST

  • Switch Type:

    KEYPAD SWITCH

  • Terminal Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

MSLPT5252AG3TR Frequently Asked Questions (FAQs)

  • TE Connectivity provides a recommended PCB layout and land pattern in their application note AN-1043, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
  • The MSLPT5252AG3TR has a high power density, so thermal management is crucial. Ensure good airflow around the device, use a heat sink if necessary, and follow the recommended PCB layout and thermal pad connection to minimize thermal resistance.
  • The MSLPT5252AG3TR has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. It's essential to consider the specific application requirements and ensure the device operates within a safe temperature range.
  • The MSLPT5252AG3TR is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, you should consider additional mechanical support or vibration damping measures to ensure the device's reliability and performance.
  • To ensure reliability and quality, follow TE Connectivity's recommended design guidelines, use a qualified manufacturer, and implement a robust testing and validation process. Additionally, consider using a device with a higher rating or margin than required to account for any potential variations in the application.
