MSLPT5252BG2MTR - TE Connectivity

Description: 50 mA Tactile Switch, Round Actuator, NO, Stainless Steel, Silver Contact Plating, Low Profile, 12 VDC, Alcoswitch LPT , -25°C ~ 70°C

Download MSLPT5252BG2MTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

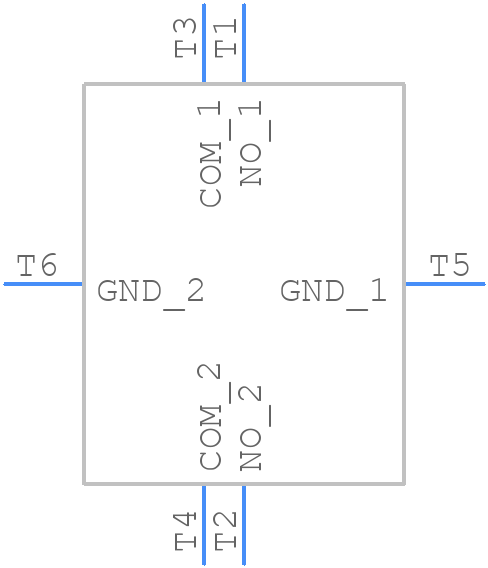

MSLPT5252BG2MTR - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
MSLPT5252BG2MTR - TE Connectivity PCB footprint - Other - Other - MSLPT5252BG2MTR-1
click to zoom
3D Models
MSLPT5252BG2MTR - TE Connectivity - 3D model - Other - MSLPT5252BG2MTR-1
click to zoom

MSLPT5252BG2MTR Details

  • Manufacturer Part Number:

    MSLPT5252BG2MTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.40

  • Factory Lead Time:

    6 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Actuator Color:

    SILVER

  • Actuator Finish:

    NICKEL

  • Actuator Material:

    POLYTETRA FLUOROETHYLENE

  • Actuator Travel:

    0.25 mm

  • Actuator Type:

    ROUND TYPE

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    5.2 mm

  • Body Color:

    BLACK

  • Body Height:

    1.5 mm

  • Body Length or Diameter:

    5.2 mm

  • Center Contact Material:

    STAINLESS STEEL

  • Center Contact Plating:

    SILVER

  • Circuit Configuration:

    1X1

  • Contact Current(AC)-Max:

    0.05 A

  • Contact Current(DC)-Max:

    0.05 A

  • Contact (DC) Max Rating R Load:

    0.05A@12VDC

  • Contact Resistance:

    0.1 mΩ

  • Contact Voltage(DC)-Max:

    12 V

  • Dielectric Withstand Volts:

    250VAC V

  • Electrical Life:

    1000000 Cycle(s)

  • End Contact Material:

    STAINLESS STEEL

  • End Contact Plating:

    SILVER OVER NICKEL

  • Housing Material:

    POLYETHYLENE

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    THERMOPLASTIC

  • Mounting Feature:

    PANEL MOUNT

  • Number of Switches:

    1

  • Operating Force-Max:

    0.98 N

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Packing Method:

    TR

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    SPST

  • Switch Type:

    KEYPAD SWITCH

  • Terminal Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER
