MSLPT5252BG3MTR - TE Connectivity

Description: Body Features: Actuator Color Silver | Case Material Thermoplastic | Actuator Force 160 G | Actuator Force 5.64 OZ | Product Orientation Vertical | Actuator Profile Extended | Cover Material Nickel, Silver | Case Color Black | Actuator Material Polytetrafluoroethylene | Configuration Features: Number of Actuators Single | Switch Feedback Type Tactile | Operating Function NO | Ganged Without | ESD Grounding Terminal With | Configuration (Pole-Throw) Single Pole - Single Throw | Contact Features: Switch Conta

Download MSLPT5252BG3MTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

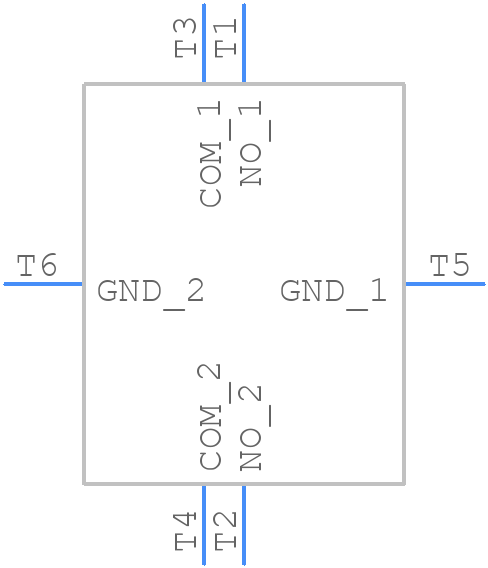

Symbol
MSLPT5252BG3MTR - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
MSLPT5252BG3MTR - TE Connectivity PCB footprint - Other - Other - MSLPT5252BG3MTR-2
click to zoom
3D Models
MSLPT5252BG3MTR - TE Connectivity - 3D model - Other - MSLPT5252BG3MTR-2
click to zoom

MSLPT5252BG3MTR Details

  • Manufacturer Part Number:

    MSLPT5252BG3MTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.40

  • Factory Lead Time:

    6 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Actuator Color:

    SILVER

  • Actuator Finish:

    NICKEL

  • Actuator Material:

    POLYTETRA FLUOROETHYLENE

  • Actuator Travel:

    0.25 mm

  • Actuator Type:

    ROUND TYPE

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    5.2 mm

  • Body Color:

    BLACK

  • Body Height:

    1.5 mm

  • Body Length or Diameter:

    5.2 mm

  • Center Contact Material:

    STAINLESS STEEL

  • Center Contact Plating:

    SILVER

  • Circuit Configuration:

    1X1

  • Contact Current(AC)-Max:

    0.05 A

  • Contact Current(DC)-Max:

    0.05 A

  • Contact (DC) Max Rating R Load:

    0.05A@12VDC

  • Contact Resistance:

    0.1 mΩ

  • Contact Voltage(DC)-Max:

    12 V

  • Dielectric Withstand Volts:

    250VAC V

  • Electrical Life:

    1000000 Cycle(s)

  • End Contact Material:

    STAINLESS STEEL

  • End Contact Plating:

    SILVER OVER NICKEL

  • Housing Material:

    POLYETHYLENE

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    THERMOPLASTIC

  • Mounting Feature:

    PANEL MOUNT

  • Number of Switches:

    1

  • Operating Force-Max:

    1.568 N

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Packing Method:

    TR

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    SPST

  • Switch Type:

    KEYPAD SWITCH

  • Terminal Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

MSLPT5252BG3MTR Frequently Asked Questions (FAQs)

  • TE Connectivity provides a recommended PCB layout and land pattern in their application note AN-1043, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
  • The MSLPT5252BG3MTR has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if possible, and follow the recommended PCB layout to minimize thermal resistance. You can also consider using thermal interface materials to improve heat transfer.
  • While the datasheet specifies an operating temperature range of -40°C to 150°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance.
  • Yes, the MSLPT5252BG3MTR is designed to withstand vibrations and shocks. However, it's crucial to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB. You may also need to add additional mechanical support or damping to the PCB to minimize the effects of vibration.
  • To ensure the reliability and longevity of MSLPT5252BG3MTR, follow proper storage and handling procedures, avoid exceeding the recommended operating conditions, and ensure good soldering and assembly practices. You can also consider implementing a burn-in or stress testing procedure to detect any early failures.
