MSLPT5252BG4MTR - TE Connectivity

Description: Tactile Switch SPST-NO Top Actuated Surface Mount

Download MSLPT5252BG4MTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

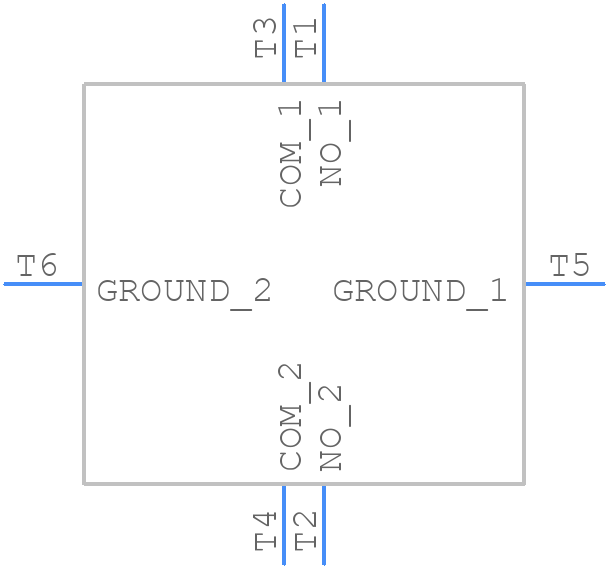

MSLPT5252BG4MTR - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
MSLPT5252BG4MTR - TE Connectivity PCB footprint - Other - Other - MSLPT5252BG4MTR-1
click to zoom
3D Models
MSLPT5252BG4MTR - TE Connectivity - 3D model - Other - MSLPT5252BG4MTR-1
click to zoom

MSLPT5252BG4MTR Details

  • Manufacturer Part Number:

    MSLPT5252BG4MTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.40

  • Factory Lead Time:

    6 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Actuator Color:

    SILVER

  • Actuator Finish:

    NICKEL

  • Actuator Material:

    POLYTETRA FLUOROETHYLENE

  • Actuator Travel:

    0.25 mm

  • Actuator Type:

    ROUND TYPE

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    5.2 mm

  • Body Color:

    BLACK

  • Body Height:

    1.5 mm

  • Body Length or Diameter:

    5.2 mm

  • Center Contact Material:

    STAINLESS STEEL

  • Center Contact Plating:

    SILVER

  • Circuit Configuration:

    1X1

  • Contact Current(AC)-Max:

    0.05 A

  • Contact Current(DC)-Max:

    0.05 A

  • Contact (DC) Max Rating R Load:

    0.05A@12VDC

  • Contact Resistance:

    0.1 mΩ

  • Contact Voltage(DC)-Max:

    12 V

  • Dielectric Withstand Volts:

    250VAC V

  • Electrical Life:

    200000 Cycle(s)

  • End Contact Material:

    STAINLESS STEEL

  • End Contact Plating:

    SILVER OVER NICKEL

  • Housing Material:

    POLYETHYLENE

  • Insulation Resistance:

    100000000 Ω

  • Insulator Material:

    THERMOPLASTIC

  • Mounting Feature:

    PANEL MOUNT

  • Number of Switches:

    1

  • Operating Force-Max:

    2.548 N

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Packing Method:

    TR

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    SPST

  • Switch Type:

    KEYPAD SWITCH

  • Terminal Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

MSLPT5252BG4MTR Frequently Asked Questions (FAQs)

  • TE Connectivity provides a recommended PCB layout and land pattern in their application note AN-1043, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
  • The MSLPT5252BG4MTR has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if possible, and follow the recommended PCB layout and land pattern to minimize thermal resistance. You can also consider using thermal interface materials to improve heat transfer.
  • The MSLPT5252BG4MTR has an operating temperature range of -40°C to 150°C, but it's essential to note that the maximum temperature rating is dependent on the specific application and the power dissipation. Always check the derating curves in the datasheet to ensure the device operates within a safe temperature range.
  • The MSLPT5252BG4MTR is designed to withstand vibrations, but it's essential to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB. You may also need to add additional mechanical support or use a vibration-dampening material to ensure the device operates reliably in high-vibration environments.
  • To ensure the reliability of MSLPT5252BG4MTR in high-reliability applications, follow proper design, manufacturing, and testing guidelines. This includes using a robust PCB design, ensuring proper soldering and cleaning, and performing thorough testing and inspection. You may also need to consider using a device with a higher reliability rating or implementing redundancy in your design.
