MSLPT5252BL2MTR - TE Connectivity

Description: Body Features: Actuator Force 3.52 OZ | Actuator Profile Extended | Actuator Material Polytetrafluoroethylene | Actuator Force 100 G | Case Color Black | Actuator Color Silver | Product Orientation Vertical | Case Material Thermoplastic | Configuration Features: Switch Feedback Type Tactile | Operating Function NO | Number of Actuators Single | ESD Grounding Terminal With | Ganged Without | Configuration (Pole-Throw) Single Pole - Single Throw | Contact Features: Contact Base Material Stainless Steel | Cont

Download MSLPT5252BL2MTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

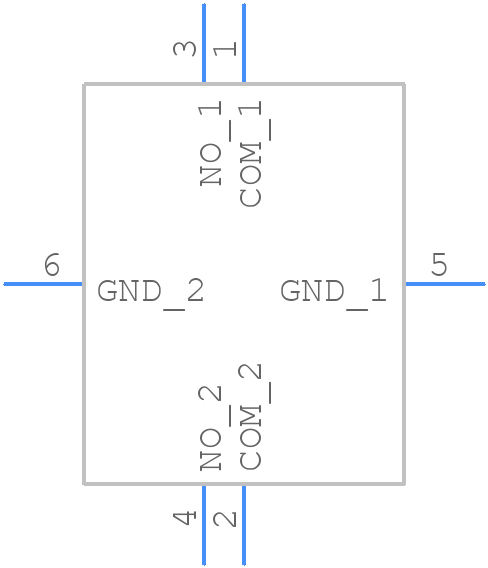

MSLPT5252BL2MTR - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
MSLPT5252BL2MTR - TE Connectivity PCB footprint - Other - Other - MSLPT5252BL2MTR-1
click to zoom
3D Models
MSLPT5252BL2MTR - TE Connectivity - 3D model - Other - MSLPT5252BL2MTR-1
click to zoom

MSLPT5252BL2MTR Details

  • Manufacturer Part Number:

    MSLPT5252BL2MTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    6 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Actuator Color:

    SILVER

  • Actuator Material:

    POLYTETRA FLUOROETHYLENE

  • Body Color:

    BLACK

  • Center Contact Plating:

    SILVER

  • Contact Current(AC)-Max:

    0.05 A

  • Contact Current(DC)-Max:

    0.05 A

  • End Contact Material:

    STAINLESS STEEL

  • Housing Material:

    POLYETHYLENE

  • Mounting Feature:

    PANEL MOUNT

  • Operating Force-Max:

    0.98 N

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Packing Method:

    TR

  • Surface Mount:

    NO

  • Switch Function:

    SPST

  • Switch Type:

    KEYPAD SWITCH

  • Termination Type:

    SOLDER
