MSLPT5252CG1BTR - TE Connectivity

Description: Tactile Switches, Round Actuator Style, NO, Stainless Steel, Silver, Low Profile, 50mA Contact Current Rating, Alcoswitch LPT

Download MSLPT5252CG1BTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

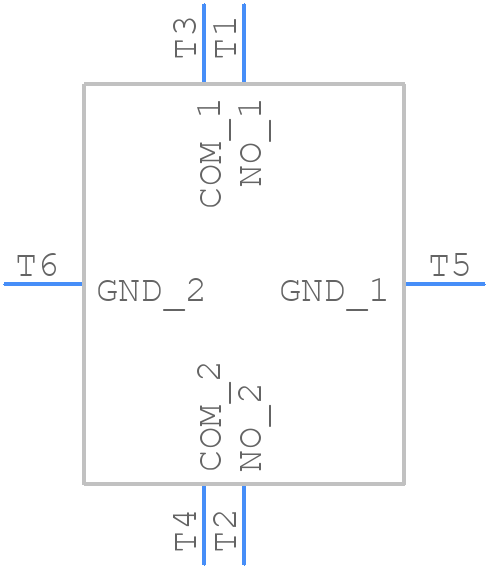

MSLPT5252CG1BTR - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
MSLPT5252CG1BTR - TE Connectivity PCB footprint - Other - Other - MSLPT5252CG1BTR-2
click to zoom
3D Models
MSLPT5252CG1BTR - TE Connectivity - 3D model - Other - MSLPT5252CG1BTR-2
click to zoom

MSLPT5252CG1BTR Details

  • Manufacturer Part Number:

    MSLPT5252CG1BTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    6 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Actuator Color:

    BLACK

  • Actuator Material:

    POLYETHYLENE

  • Body Color:

    BLACK

  • Center Contact Plating:

    SILVER

  • Contact Current(AC)-Max:

    0.05 A

  • Contact Current(DC)-Max:

    0.05 A

  • End Contact Material:

    STAINLESS STEEL

  • Housing Material:

    POLYETHYLENE

  • Mounting Feature:

    PANEL MOUNT

  • Operating Force-Max:

    0.686 N

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Packing Method:

    TR

  • Surface Mount:

    NO

  • Switch Function:

    SPST

  • Switch Type:

    KEYPAD SWITCH

  • Termination Type:

    SOLDER

MSLPT5252CG1BTR Frequently Asked Questions (FAQs)

  • TE Connectivity provides a recommended PCB layout and land pattern in their application note AN-1043, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
  • Proper thermal management is crucial for the reliability and performance of MSLPT5252CG1BTR. TE Connectivity recommends using a thermal pad or heat sink to dissipate heat, and ensuring good airflow around the device. The thermal resistance of the device should also be considered in the design.
  • The maximum operating temperature range for MSLPT5252CG1BTR is -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures, and derating may be necessary.
  • Yes, MSLPT5252CG1BTR is designed to withstand high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent damage or dislodging. TE Connectivity provides guidelines for vibration testing and mounting in their application notes.
  • TE Connectivity provides troubleshooting guides and application notes on their website, which can help identify and resolve common issues with MSLPT5252CG1BTR. Additionally, contacting TE Connectivity's technical support team can provide further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MSLPT5252CG1BTR Overview

Use the download button to access the MSLPT5252CG1BTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSLPT, or try a keyword search, such as Keypad Switches

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
