MSLPT5252CG3BTR - TE Connectivity

Description: Body Features: Case Material Thermoplastic | Product Orientation Vertical | Cover Material Nickel, Silver | Actuator Color Black | Actuator Material Thermoplastic | Case Color Black | Actuator Profile Extended | Actuator Force 5.64 OZ | Actuator Force 160 G | Configuration Features: Ganged Without | ESD Grounding Terminal With | Switch Feedback Type Tactile | Operating Function NO | Configuration (Pole-Throw) Single Pole - Single Throw | Number of Actuators Single | Contact Features: Contact Current Rating

Download MSLPT5252CG3BTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

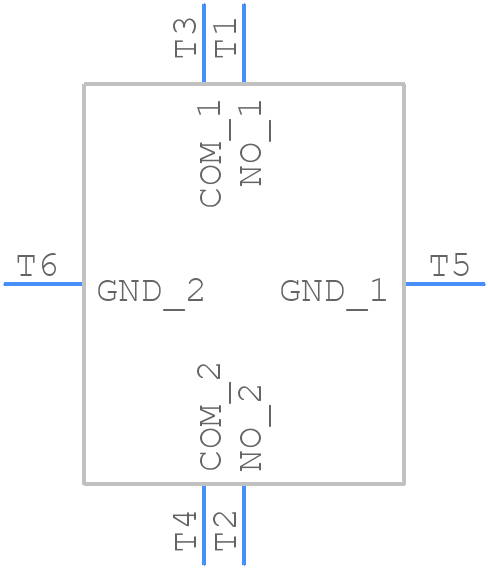

MSLPT5252CG3BTR - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
MSLPT5252CG3BTR - TE Connectivity PCB footprint - Other - Other - MSLPT5252CG3BTR-1
click to zoom
3D Models
MSLPT5252CG3BTR - TE Connectivity - 3D model - Other - MSLPT5252CG3BTR-1
click to zoom

MSLPT5252CG3BTR Details

  • Manufacturer Part Number:

    MSLPT5252CG3BTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    6 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Actuator Color:

    BLACK

  • Actuator Material:

    POLYETHYLENE

  • Body Color:

    BLACK

  • Center Contact Plating:

    SILVER

  • Contact Current(AC)-Max:

    0.05 A

  • Contact Current(DC)-Max:

    0.05 A

  • End Contact Material:

    STAINLESS STEEL

  • Housing Material:

    POLYETHYLENE

  • Mounting Feature:

    PANEL MOUNT

  • Operating Force-Max:

    1.568 N

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Packing Method:

    TR

  • Surface Mount:

    NO

  • Switch Function:

    SPST

  • Switch Type:

    KEYPAD SWITCH

  • Termination Type:

    SOLDER

MSLPT5252CG3BTR Frequently Asked Questions (FAQs)

  • TE Connectivity provides a recommended PCB layout and land pattern in their application note AN-1043, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
  • The MSLPT5252CG3BTR has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if possible, and follow the recommended PCB layout and thermal pad connection to minimize thermal resistance.
  • The MSLPT5252CG3BTR has an operating temperature range of -40°C to 150°C, but it's essential to derate the power handling at higher temperatures to prevent thermal runaway and ensure reliability.
  • Yes, the MSLPT5252CG3BTR is designed to withstand high vibrations and is suitable for use in harsh environments. However, it's essential to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB.
  • TE Connectivity recommends a reflow soldering process with a peak temperature of 260°C for 20-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
