MSLPT5252CL3BTR - TE Connectivity

Description: Tactile Switches, Round Actuator Style, NO, Stainless Steel, Silver, Low Profile, 50mA Contact Current Rating, Alcoswitch LPT

Download MSLPT5252CL3BTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

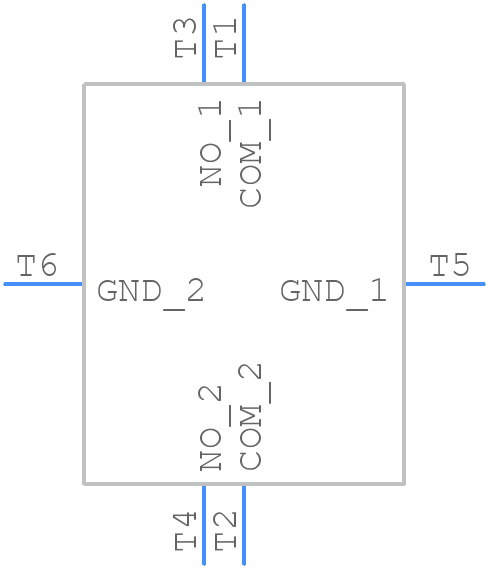

MSLPT5252CL3BTR - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
MSLPT5252CL3BTR - TE Connectivity PCB footprint - Other - Other - MSLPT5252CL3BTR-1
click to zoom
3D Models
MSLPT5252CL3BTR - TE Connectivity - 3D model - Other - MSLPT5252CL3BTR-1
click to zoom

MSLPT5252CL3BTR Details

  • Manufacturer Part Number:

    MSLPT5252CL3BTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    6 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Actuator Color:

    BLACK

  • Actuator Material:

    POLYETHYLENE

  • Body Color:

    BLACK

  • Center Contact Plating:

    SILVER

  • Contact Current(AC)-Max:

    0.05 A

  • Contact Current(DC)-Max:

    0.05 A

  • End Contact Material:

    STAINLESS STEEL

  • Housing Material:

    POLYETHYLENE

  • Mounting Feature:

    PANEL MOUNT

  • Operating Force-Max:

    1.568 N

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Packing Method:

    TR

  • Surface Mount:

    NO

  • Switch Function:

    SPST

  • Switch Type:

    KEYPAD SWITCH

  • Termination Type:

    SOLDER
