MSM6255GS-BK Details

• Manufacturer Part Number:

  MSM6255GS-BK

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

• Package Description:

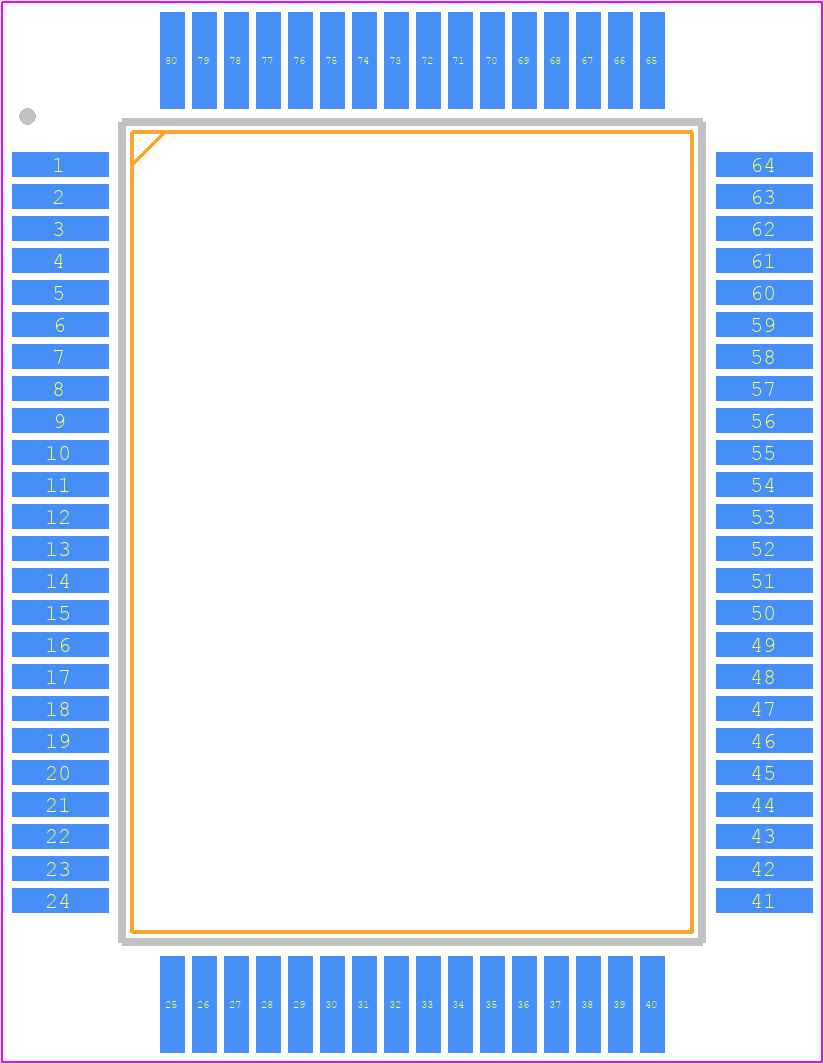

  14 X 20 MM, 0.80 MM PITCH, PLASTIC, QFP-80

• Pin Count:

  80

• HTS Code:

  8542.31.00.30

• Manufacturer:

  LAPIS Semiconductor Co Ltd

• YTEOL:

  0

• Address Bus Width:

  16

• Bus Compatibility:

  8085; Z80; 8086; 6800

• Clock Frequency-Max:

  11 MHz

• Display Configuration:

  128 X 256 CHARACTERS

• External Data Bus Width:

  8

• JESD-30 Code:

  R-PQFP-G80

• JESD-609 Code:

  e0

• Length:

  20 mm

• Number of Terminals:

  80

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP80,.75X1,32

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.5 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  DISPLAY CONTROLLER, DOT MATRIX LCD DISPLAY
