MSM80C85AHGS - OKI

MSM80C85AHGS Details

• Manufacturer Part Number:

  MSM80C85AHGS

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

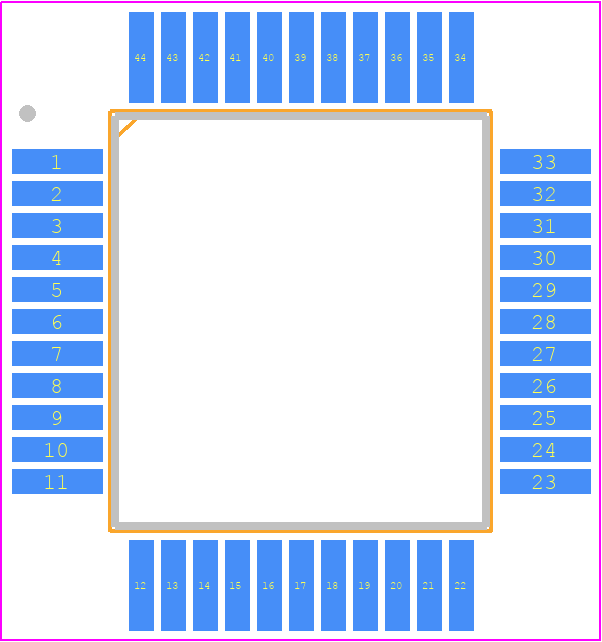

• Package Description:

  9 X 10 MM, PLASTIC, QFP-44

• Pin Count:

  44

• HTS Code:

  8542.31.00.15

• Manufacturer:

  OKI Electric Industry Co Ltd

• YTEOL:

  0

• Address Bus Width:

  16

• Bit Size:

  8

• Boundary Scan:

  NO

• Clock Frequency-Max:

  10 MHz

• External Data Bus Width:

  8

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PQFP-G44

• Length:

  10.5 mm

• Low Power Mode:

  YES

• Number of External Interrupts:

  5

• Number of Serial I/Os:

  1

• Number of Terminals:

  44

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• RAM (words):

  0

• Seated Height-Max:

  2.25 mm

• Speed:

  5 MHz

• Supply Current-Max:

  20 mA

• Supply Voltage-Max:

  6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Width:

  9.5 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR
