MSS1200RG04 - TE Connectivity

Description: Slide Switches SLIDE SWITCH INSTRUMNTATN

Download MSS1200RG04 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

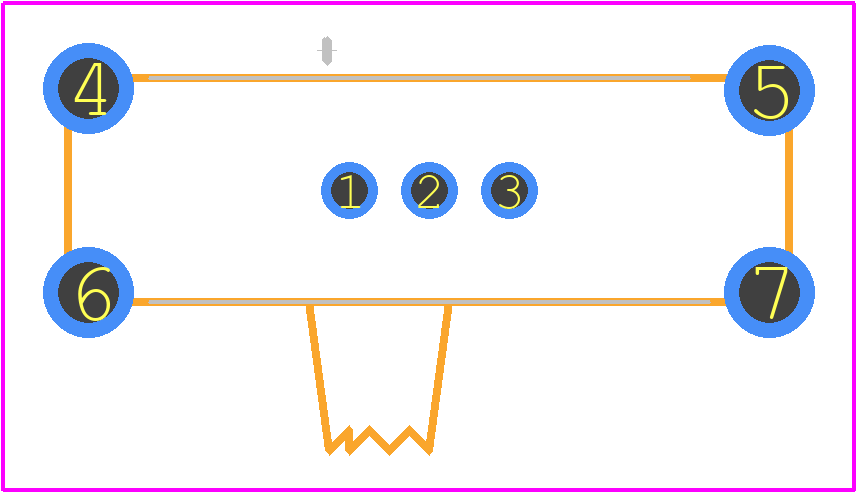

MSS1200RG04 - TE Connectivity PCB footprint - Other - Other - MSS1200RG04-1
click to zoom
3D Models
MSS1200RG04 - TE Connectivity  - 3D model - Other - MSS1200RG04-1
click to zoom

MSS1200RG04 Details

  • Manufacturer Part Number:

    MSS1200RG04

  • Brand Name:

    Alcoswitch

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.50

  • Manufacturer:

    TE Connectivity

  • Actuator Color:

    BLACK

  • Actuator Length:

    0.157 inch

  • Actuator Material:

    POLYOXYMETHYLENE

  • Actuator Travel:

    2.032 mm

  • Actuator Type:

    SIDE TYPE

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    5.6 mm

  • Body Length or Diameter:

    18 mm

  • Center Contact Plating:

    GOLD

  • Contact Current(AC)-Max:

    0.4 A

  • Contact Current(DC)-Max:

    0.4 A

  • Contact Function:

    ON-ON

  • Contact Voltage(DC)-Max:

    20 V

  • End Contact Material:

    COPPER ALLOY

  • Mounting Feature:

    PANEL MOUNT

  • Number of Independent Keys:

    1

  • Packing Method:

    TRAY

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPDT

  • Switch Type:

    SLIDE SWITCH

  • Termination Type:

    SOLDER
