Diptronics recommends a PCB layout with a minimum of 1 oz copper thickness, and a land pattern with a 0.5 mm keep-out zone around the device to ensure proper heat dissipation and minimize thermal resistance.
Use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the PCB pads. Ensure the component is properly aligned and seated before soldering. Avoid using excessive solder or flux, as this can lead to cold solder joints.
The MSS14-V-T/R is rated for operation from -40°C to 125°C, but it's recommended to derate the device by 1.5°C/W above 85°C to ensure reliable operation and prevent thermal runaway.
Yes, the MSS14-V-T/R is designed to withstand vibrations up to 10 G peak acceleration, but it's recommended to secure the device using a suitable mounting method, such as a screw or adhesive, to prevent mechanical stress and ensure reliable operation.
Check the PCB layout and thermal design for proper heat dissipation, ensure proper soldering and assembly, and verify the input voltage and current ratings. Use a thermal imaging camera or thermocouple to monitor the device temperature, and consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
MSS14-V-T/R Overview

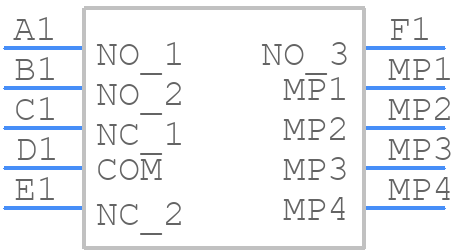

Use the download button to access the MSS14-V-T/R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSS14,
or try a keyword search, such as Slide Switches
