Part Image

MSS2200G04 - TE Connectivity

Description: Double Pole - Double Throw, Vertical, Copper Alloy, Single Actuator, 2 Position, On On, .4A Contact Current Rating, Alcoswitch MSS, Slide Switches

Download MSS2200G04 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MSS2200G04 - TE Connectivity - PCB symbol
click to zoom

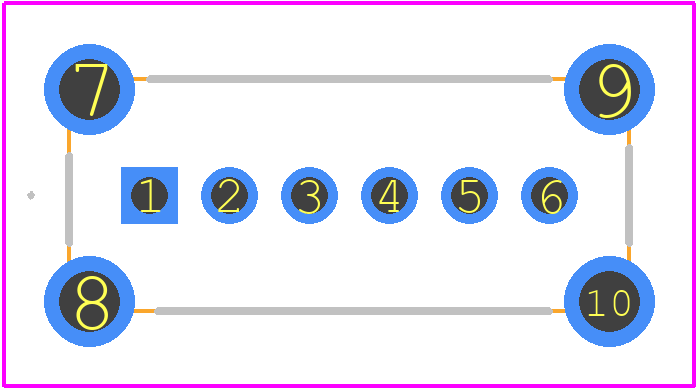

PCB Footprints
MSS2200G04 - TE Connectivity PCB footprint - Other - Other - MSS2200G04-2
click to zoom
3D Models
MSS2200G04 - TE Connectivity - 3D model - Other - MSS2200G04-2
click to zoom

MSS2200G04 Details

  • Manufacturer Part Number:

    MSS2200G04

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    TE Connectivity

  • Actuator Color:

    BLACK

  • Actuator Length:

    0.09 inch

  • Actuator Material:

    POLYOXYMETHYLENE

  • Actuator Travel:

    2.0066 mm

  • Actuator Type:

    TOP TYPE

  • Body Breadth:

    5.8 mm

  • Body Length or Diameter:

    14 mm

  • Center Contact Plating:

    GOLD

  • Contact Current(AC)-Max:

    0.4 A

  • Contact Current(DC)-Max:

    0.4 A

  • Contact Function:

    ON-ON

  • Contact Voltage(DC)-Max:

    20 V

  • End Contact Material:

    COPPER ALLOY

  • Mounting Feature:

    PANEL MOUNT

  • Number of Independent Keys:

    1

  • Number of Positions:

    2

  • Packing Method:

    TRAY

  • Surface Mount:

    NO

  • Switch Function:

    DPDT

  • Switch Type:

    SLIDE SWITCH

  • Termination Type:

    SOLDER

MSS2200G04 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application notes.
  • Yes, the MSS2200G04 is designed to withstand high-vibration environments. It meets the IEC 61373 Category 1, Class B standard for vibration resistance.
  • The maximum operating temperature range for the MSS2200G04 is -40°C to 125°C, as specified in the datasheet.
  • Yes, the MSS2200G04 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of hazardous substances in electrical and electronic equipment.
  • Yes, the MSS2200G04 is designed to operate in humid environments. It meets the IEC 60068-2-30 standard for humidity resistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MSS2200G04 Overview

Use the download button to access the MSS2200G04 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSS22, or try a keyword search, such as Slide Switches

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
