- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MSS4200G04
- Part Number MSS4200G04
- Manufacturer TE Connectivity
- Pin Count 16
- Part Category Switch
- Package Category Other

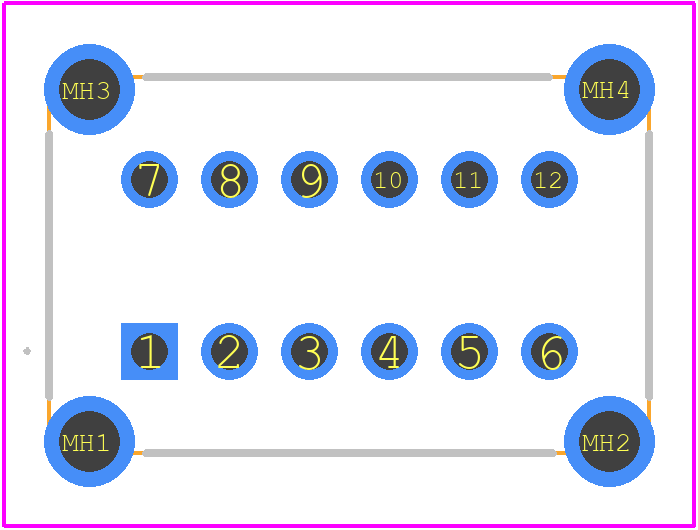

- Footprint Name Other - MSS4200G04-2
- Released Date May 4, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MSS4200G04 Details
-
Manufacturer Part Number:
MSS4200G04
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Manufacturer:
TE Connectivity
-
Actuator Color:
BLACK
-
Actuator Length:
0.315 inch
-
Actuator Material:
POLYOXYMETHYLENE
-
Actuator Travel:
2.0066 mm
-
Actuator Type:
EXTENDED TOP TYPE
MSS4200G04 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lbf-in to 1.06 lbf-in).
-
Yes, the MSS4200G04 is designed to withstand high-vibration environments. It meets the IEC 61373 Category 1, Class B vibration standard.
-
The operating temperature range for the MSS4200G04 is -40°C to 125°C (-40°F to 257°F).
-
Yes, the MSS4200G04 is compatible with lead-free soldering processes and meets the RoHS (Restriction of Hazardous Substances) directive.
-
The maximum wire size that can be used with the MSS4200G04 is 2.5 mm² (AWG 14).
Trust Checks
Community Provided
System Verified
Community Approved
MSS4200G04 Overview
Use the download button to access the MSS4200G04 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSS42,
or try a keyword search, such as Slide Switches
