MSS4200RG04 - TE Connectivity

Description: Slide Switches 4PDT R/A Act Gold Instrumentation grad

Download MSS4200RG04 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MSS4200RG04 - TE Connectivity - PCB symbol
click to zoom

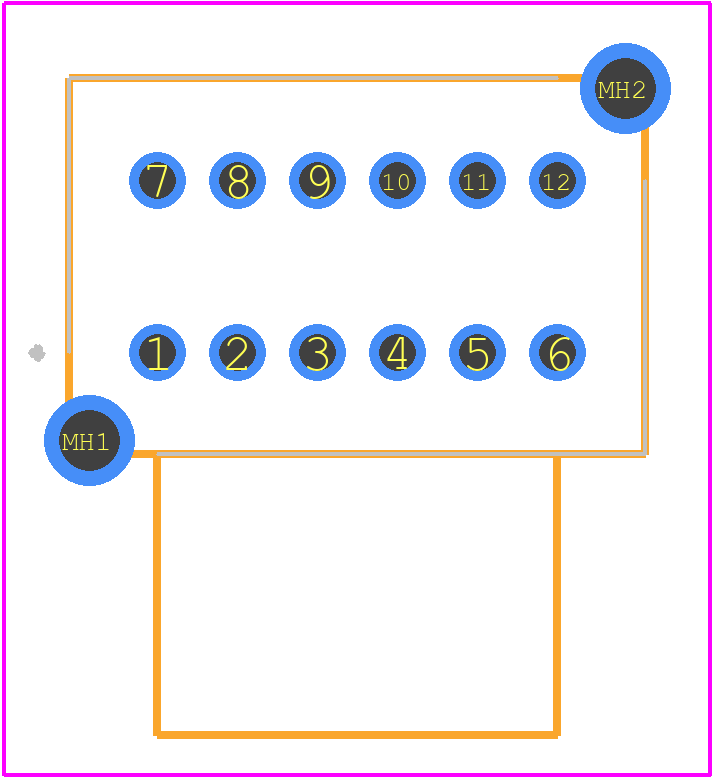

PCB Footprints
MSS4200RG04 - TE Connectivity PCB footprint - Other - Other - MSS4200RG04-2
click to zoom
3D Models
MSS4200RG04 - TE Connectivity - 3D model - Other - MSS4200RG04-2
click to zoom

MSS4200RG04 Details

  • Manufacturer Part Number:

    MSS4200RG04

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    TE Connectivity

  • Actuator Color:

    BLACK

  • Actuator Length:

    0.276 inch

  • Actuator Material:

    POLYOXYMETHYLENE

  • Actuator Travel:

    2.0066 mm

  • Actuator Type:

    SIDE TYPE

  • Body Breadth:

    9.4 mm

  • Body Length or Diameter:

    14.4 mm

  • Center Contact Plating:

    GOLD

  • Contact Current(AC)-Max:

    0.4 A

  • Contact Current(DC)-Max:

    0.4 A

  • Contact Function:

    ON-ON

  • Contact Voltage(DC)-Max:

    20 V

  • End Contact Material:

    COPPER ALLOY

  • Mounting Feature:

    PANEL MOUNT

  • Number of Independent Keys:

    1

  • Number of Positions:

    2

  • Packing Method:

    TRAY

  • Surface Mount:

    NO

  • Switch Function:

    4PDT

  • Switch Type:

    SLIDE SWITCH

  • Termination Type:

    SOLDER

MSS4200RG04 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the terminals.
  • Yes, the MSS4200RG04 is designed to withstand high-vibration environments. However, it's crucial to ensure that the connectors are properly secured and that the cables are properly dressed to prevent damage or disconnection.
  • Yes, the MSS4200RG04 is part of the TE Connectivity's Modular Signal System (MSS) family, which is designed to be compatible with other MSS products. However, it's always recommended to verify compatibility with specific products and applications.
  • The operating temperature range for the MSS4200RG04 is -40°C to 125°C. However, it's essential to note that the temperature range may vary depending on the specific application and environmental conditions.
  • The MSS4200RG04 is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's crucial to consult the datasheet and TE Connectivity's documentation for specific environmental ratings and recommendations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MSS4200RG04 Overview

Use the download button to access the MSS4200RG04 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSS42, or try a keyword search, such as Slide Switches

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
