MSSA3350RG04 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

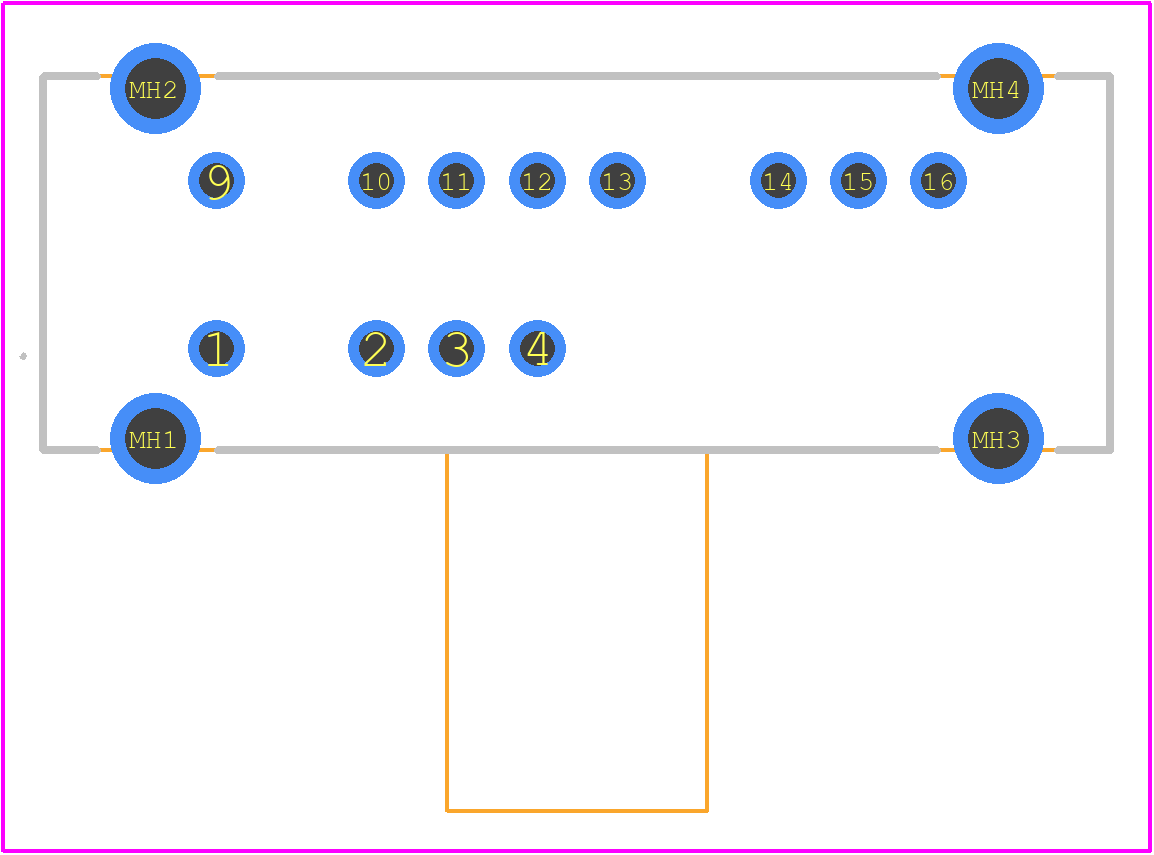

MSSA3350RG04 - TE Connectivity PCB footprint - Other - Other - MSSA3350RG04-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MSSA3350RG04
Part Number MSSA3350RG04
Manufacturer TE Connectivity
Pin Count 16
Part Category Switch
Package Category Other
Footprint Name Other - MSSA3350RG04-1
Released Date May 29, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MSSA3350RG04 Details

Manufacturer Part Number:
MSSA3350RG04
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Factory Lead Time:
28 Weeks
Manufacturer:
TE Connectivity
Actuator Color:
BLACK
Actuator Length:
0.355 inch
Actuator Material:
NYLON
Actuator Travel:
2.0066 mm
Actuator Type:
EXTENDED SIDE TYPE
Body Breadth:
9.35 mm
Body Length or Diameter:
26.67 mm
Center Contact Plating:
GOLD
Contact Current(AC)-Max:
0.4 A
Contact Current(DC)-Max:
0.4 A
Contact Function:
ON-ON-ON
Contact Voltage(DC)-Max:
20 V
End Contact Material:
COPPER ALLOY
Mounting Feature:
PANEL MOUNT
Number of Independent Keys:
1
Number of Positions:
3
Packing Method:
TRAY
Surface Mount:
NO
Switch Function:
3P3T
Switch Type:
SLIDE SWITCH
Termination Type:
SOLDER

MSSA3350RG04 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals of MSSA3350RG04 is 0.5 Nm to 1.5 Nm (0.37 lbf-in to 1.06 lbf-in).
Yes, the MSSA3350RG04 is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with intense vibrations.
Yes, the MSSA3350RG04 is part of the TE Connectivity's Modular Jack product family, which offers a range of compatible products with similar footprints and mating interfaces.
The MSSA3350RG04 has an operating temperature range of -40°C to 85°C (-40°F to 185°F), making it suitable for use in a wide range of applications.
Yes, the MSSA3350RG04 meets the IEC 61076-2-001 standard for connectors with assessed quality, ensuring compliance with industry requirements for reliability and performance.

Trust Checks

Community Provided

System Verified

Community Approved

MSSA3350RG04 Overview

Use the download button to access the MSSA3350RG04 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MSSA3, or try a keyword search, such as Slide Switches
