MSW-2-20+ - Mini-Circuits

Description: RF Switch ICs SWITCH / SURF MOUNT / RoHS

Download MSW-2-20+ Model

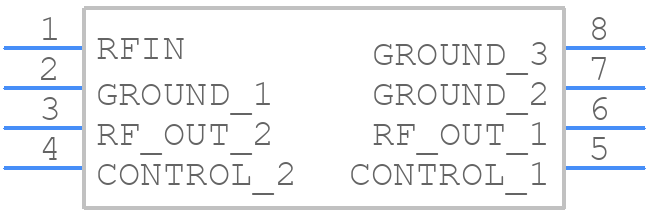

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MSW-2-20+ - Mini-Circuits PCB footprint - Small Outline Packages - Small Outline Packages - MSW-2-20+
click to zoom

MSW-2-20+ Details

  • Manufacturer Part Number:

    MSW-2-20+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.9

  • 1dB Compression Point:

    25 dBm

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31 dBm

  • Insertion Loss-Max:

    1.3 dB

  • Isolation-Min:

    20 dB

  • JESD-609 Code:

    e2

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    2000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Port Termination:

    REFLECTIVE

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.4
