MSXS-08PFFR-SH7003 footprint, schematic symbol and 3D model by Amphenol

Symbol

click to zoom

PCB Footprints

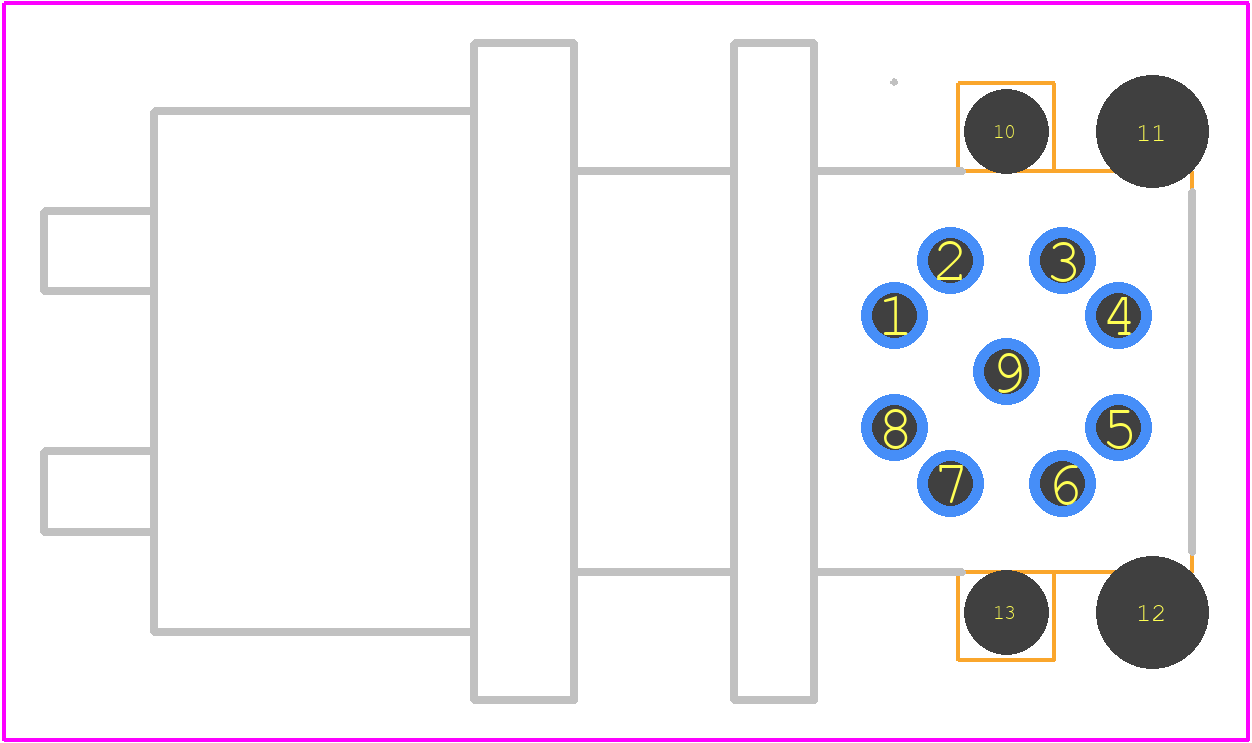

MSXS-08PFFR-SH7003 - Amphenol PCB footprint - Other - Other - MSXS-08PFFR-SH7003-5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MSXS-08PFFR-SH7003
Part Number MSXS-08PFFR-SH7003
Manufacturer Amphenol
Pin Count 9
Part Category Connector
Package Category Other
Footprint Name Other - MSXS-08PFFR-SH7003-5
Released Date May 14, 2026
Last Modified Date May 25, 2026 6:11 AM UTC
Pinout / Pin List Click Here (Member Only)

MSXS-08PFFR-SH7003 Details

Manufacturer Part Number:
MSXS-08PFFR-SH7003
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
Amphenol Corporation
YTEOL:
8
Additional Feature:
RATED CURRENT: 0.5A; RATED VOLTAGE: 60VAC/VDC
Backshell Type:
SOLID
Body Depth:
1.13 inch
Body Diameter:
0.476 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
CIRCULAR CONNECTOR
Contact Gender:
FEMALE
Coupling Type:
THREADED
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
POLYETHYLENE
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Option:
WATERPROOF
Reference Standard:
UL
Shell Finish:
NICKEL
Shell Material:
METAL
Termination Type:
SOLDER
Total Number of Contacts:
8

MSXS-08PFFR-SH7003 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.8 Nm (4.4-7.0 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the MSXS-08PFFR-SH7003 is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Cat. 2, which means it can operate reliably in applications with vibrations up to 15 g (147 m/s²) in the frequency range of 10-2000 Hz.
The MSXS-08PFFR-SH7003 is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's essential to follow the recommended storage and operating conditions to ensure the connector's reliability and performance.
The MSXS-08PFFR-SH7003 has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
While the datasheet specifies AWG 20-24 wire sizes, it's possible to use this connector with other wire sizes. However, it's essential to consult with Amphenol Corporation or a qualified engineer to ensure the connector's performance and reliability are not compromised.
