The maximum operating temperature range for the MT25QL02GCBB8E12-0AUT is -40°C to 85°C.
The HOLD# signal should be asserted low to pause the current operation and de-asserted high to resume the operation. During hold, the device will tri-state its outputs and ignore any further input signals.
The WP# signal is used to prevent accidental writes to the status register and the flash memory array. When WP# is low, the device allows writes to the status register and the flash memory array. When WP# is high, the device prevents writes to the status register and the flash memory array.
The MT25QL02GCBB8E12-0AUT is a 256Mb (32MB) flash memory device, organized as 2,097,152 words of 16 bits each.
The typical programming time for the MT25QL02GCBB8E12-0AUT is 3.5ms for a 256-byte page.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MT25QL02GCBB8E12-0AUT Overview

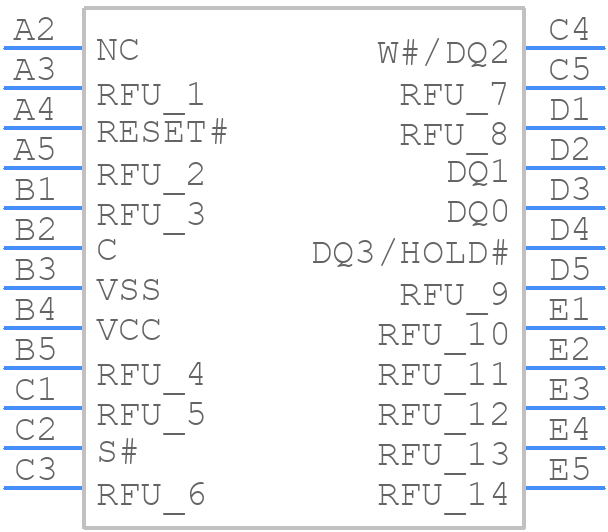

Use the download button to access the MT25QL02GCBB8E12-0AUT schematic symbol, PCB footprint, and 3D model.
