MT25QU02GCBB8E12-0SIT - Micron

Description: NOR Flash SERIAL NOR SLC 512MX4 TBGA QDP

Download MT25QU02GCBB8E12-0SIT Model

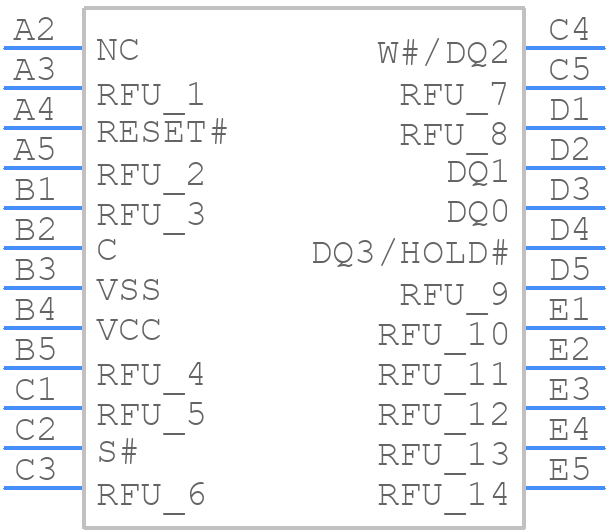

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MT25QU02GCBB8E12-0SIT - Micron PCB footprint - BGA - BGA - 24-Ball T-PBGA (5 x 5 ball grid array)
click to zoom
3D Models
MT25QU02GCBB8E12-0SIT - Micron  - 3D model - BGA - 24-Ball T-PBGA (5 x 5 ball grid array)
click to zoom

MT25QU02GCBB8E12-0SIT Details

  • Manufacturer Part Number:

    MT25QU02GCBB8E12-0SIT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TBGA-24

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Micron Technology Inc

  • YTEOL:

    6.75

  • Clock Frequency-Max (fCLK):

    166 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    2147483648 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    268435456 words

  • Number of Words Code:

    256000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,5X5,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    QSPI

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

MT25QU02GCBB8E12-0SIT Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MT25QU02GCBB8E12-0SIT is -40°C to 85°C.
  • The device requires a power-up sequence of VCC first, then VPP, and a power-down sequence of VPP first, then VCC. This ensures proper device operation and prevents latch-up.
  • Micron recommends following the JEDEC standard for PCB layout and routing, with a focus on minimizing signal trace lengths and avoiding noise coupling. A 4-layer PCB with a solid ground plane is recommended.
  • The device requires a clock signal with a frequency range of 50-133 MHz. The clock signal should be a stable, low-jitter signal with a duty cycle of 45-55%.
  • The device's typical active current is 25 mA, and the typical standby current is 10 μA. The device operates from a single 1.8V power supply, with a maximum power consumption of 450 mW.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MT25QU02GCBB8E12-0SIT Overview

Use the download button to access the MT25QU02GCBB8E12-0SIT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MT25Q, or try a keyword search, such as Flash Memories
