MT28EW128ABA1HJS-0SIT - Micron

MT28EW128ABA1HJS-0SIT Details

• Manufacturer Part Number:

  MT28EW128ABA1HJS-0SIT

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

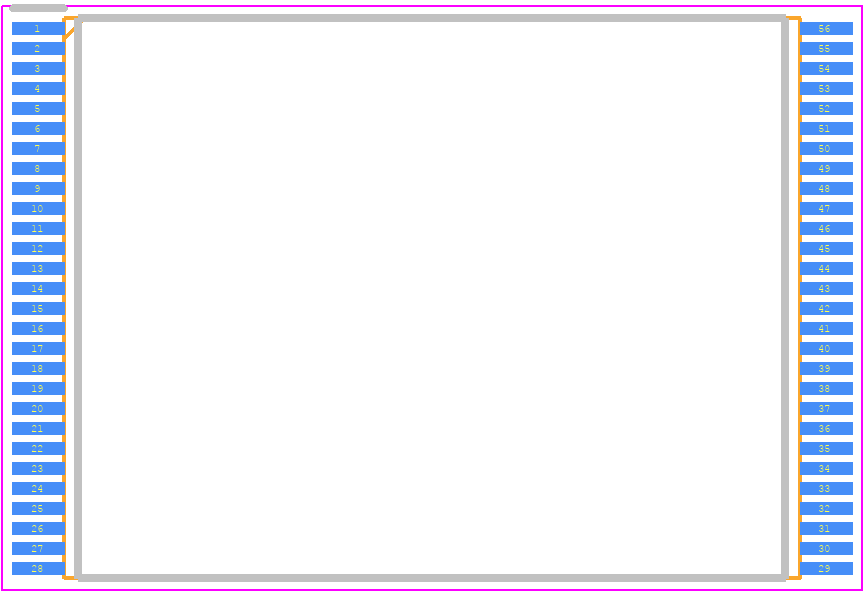

  14 X 20 MM, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, TSOP-56

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Date Of Intro:

  2016-04-22

• Manufacturer:

  Micron Technology Inc

• YTEOL:

  3.15

• Access Time-Max:

  70 ns

• Alternate Memory Width:

  8

• JESD-30 Code:

  R-PDSO-G56

• JESD-609 Code:

  e3

• Length:

  18.4 mm

• Memory Density:

  134217728 bit

• Memory IC Type:

  FLASH

• Memory Width:

  16

• Number of Functions:

  1

• Number of Terminals:

  56

• Number of Words:

  8388608 words

• Number of Words Code:

  8000000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  8MX16

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Programming Voltage:

  3 V

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Type:

  NOR TYPE

• Width:

  14 mm
