MT28EW256ABA1HPC-0SIT - Micron

Description: NOR Flash EW-SERIES FLASH NOR SLC 16MX16 LBGA

Download MT28EW256ABA1HPC-0SIT Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MT28EW256ABA1HPC-0SIT model

Email notifications will be applied after download.

Send part feedback

Symbol

MT28EW256ABA1HPC-0SIT - Micron - PCB symbol

PCB Footprints

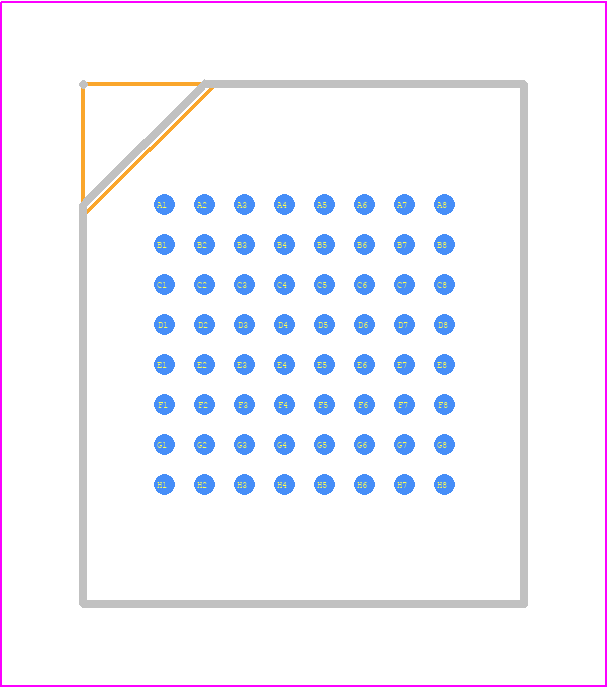

MT28EW256ABA1HPC-0SIT - Micron PCB footprint - BGA - BGA - 64-Ball LBGA – 11mm x 13mm (Package Code: PC)

3D Models

MT28EW256ABA1HPC-0SIT - Micron - 3D model - BGA - 64-Ball LBGA – 11mm x 13mm (Package Code: PC)

Datasheet Download Datasheet
Stock & Prices Price & Stock for MT28EW256ABA1HPC-0SIT
Part Number MT28EW256ABA1HPC-0SIT
Manufacturer Micron
Pin Count 64
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 64-Ball LBGA – 11mm x 13mm (Package Code: PC)
Released Date Nov 11, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MT28EW256ABA1HPC-0SIT Details

Manufacturer Part Number:
MT28EW256ABA1HPC-0SIT
Manufacturer:
Micron Technology Inc

Trust Checks

Community Provided

System Verified

Community Approved

MT28EW256ABA1HPC-0SIT Overview

Use the download button to access the MT28EW256ABA1HPC-0SIT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MT28E, or try a keyword search, such as Flash Memories
