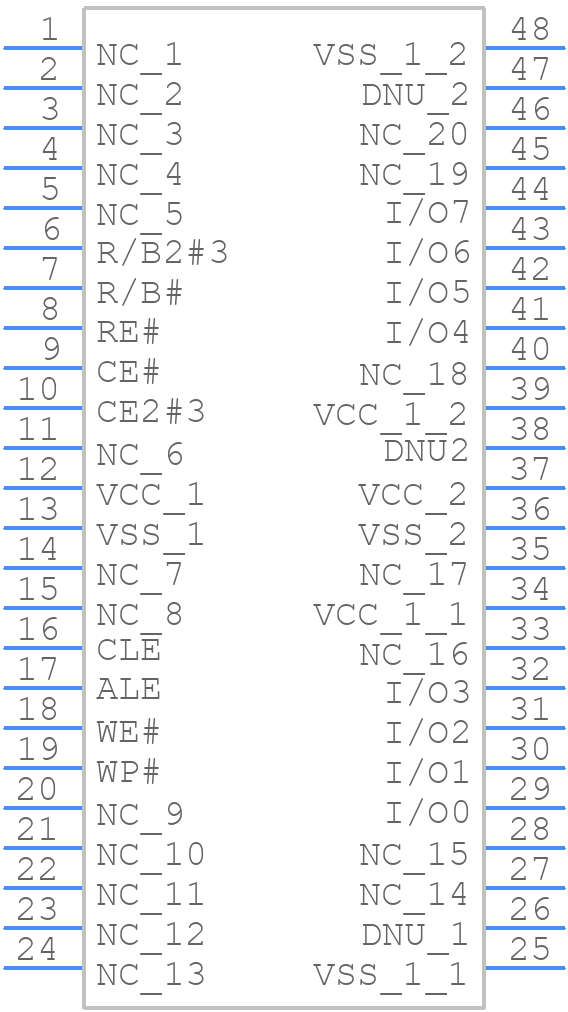

MT29F4G08ABADAWP-ITX:D - Micron

MT29F4G08ABADAWP-ITX:D Details

• Manufacturer Part Number:

  MT29F4G08ABADAWP-ITX:D

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Factory Lead Time:

  10 Weeks

• Manufacturer:

  Micron Technology Inc

• YTEOL:

  1

• Data Retention Time-Min:

  10

• Endurance:

  100000 Write/Erase Cycles

• JESD-30 Code:

  R-PDSO-G48

• JESD-609 Code:

  e1

• Length:

  18.4 mm

• Memory Density:

  4294967296 bit

• Memory IC Type:

  FLASH

• Memory Width:

  8

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  48

• Number of Words:

  536870912 words

• Number of Words Code:

  512000000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  512MX8

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSOP1

• Package Equivalence Code:

  TSSOP48,.8,20

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Parallel/Serial:

  SERIAL

• Peak Reflow Temperature (Cel):

  260

• Programming Voltage:

  3.3 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Standby Current-Max:

  0.0001 A

• Supply Current-Max:

  0.035 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Type:

  SLC NAND TYPE

• Width:

  12 mm

• Write Cycle Time-Max (tWC):

  0.00002 ms

• Write Protection:

  HARDWARE
