MT29F4G08ABAEAWP-IT:E footprint, schematic symbol and 3D model by Micron

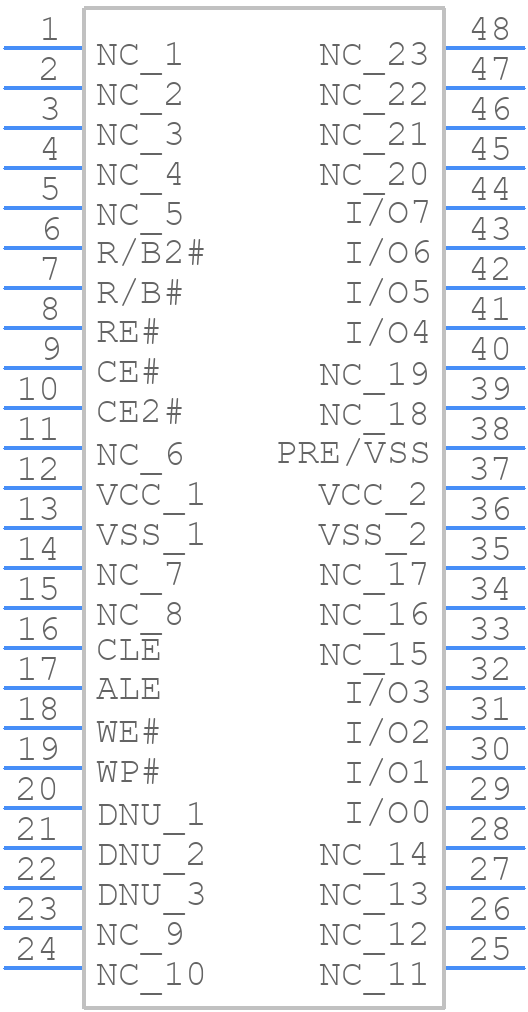

Symbol

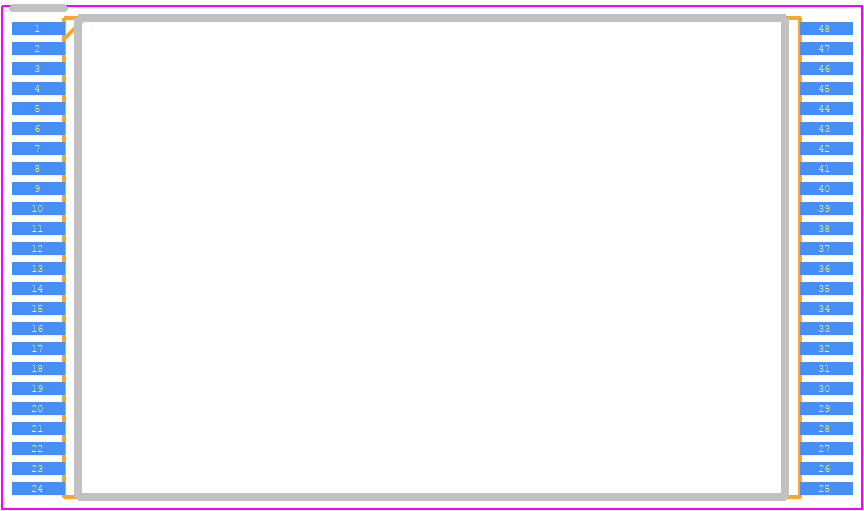

PCB Footprints

3D Models

MT29F4G08ABAEAWP-IT:E Details

The maximum operating temperature range for the MT29F4G08ABAEAWP-IT:E is -40°C to 85°C.
The device has a built-in power-on reset circuit that ensures the device is in a known state after power-up. No external reset circuitry is required.
The recommended clock frequency for the MT29F4G08ABAEAWP-IT:E is up to 104 MHz.
The device provides a status register that indicates the outcome of programming or erase operations. The host controller can poll the status register to determine if the operation was successful or not.
The typical programming time for the MT29F4G08ABAEAWP-IT:E is around 2-3 ms per 528-byte page.

Community Provided

System Verified

Community Approved

Use the download button to access the MT29F4G08ABAEAWP-IT:E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MT29F, or try a keyword search, such as Flash Memories
