The maximum operating temperature range for the MT35XL512ABA1G12-0SIT is -40°C to 85°C.
The device requires a controlled power-up and power-down sequence to prevent damage. A slow ramp-up of the power supply voltage (VCC) is recommended, and the device should be powered down in the reverse order of power-up.
The recommended clock frequency for the MT35XL512ABA1G12-0SIT is up to 166 MHz, but it can operate at frequencies up to 200 MHz with reduced voltage and temperature ranges.
The device provides error detection and correction mechanisms, such as ECC and parity bits. Implementing error handling and exception routines in the system design is recommended to ensure data integrity and system reliability.
The device requires a decoupling capacitor of at least 0.1 μF between VCC and VSS, and a decoupling capacitor of at least 0.01 μF between VCCQ and VSSQ, to ensure stable operation and reduce noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MT35XL512ABA1G12-0SIT Overview

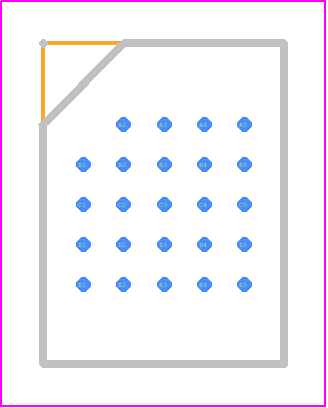

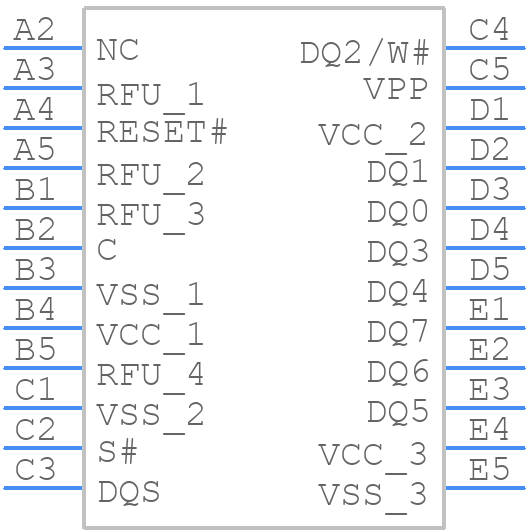

Use the download button to access the MT35XL512ABA1G12-0SIT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MT35X,
or try a keyword search, such as Flash Memories
