MT5-1L-V-T/R - Diptronics

Description: Multi-Directional Switches 4-Direction (& Center Push)

Download MT5-1L-V-T/R Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MT5-1L-V-T/R model

Email notifications will be applied after download.

Send part feedback

Symbol

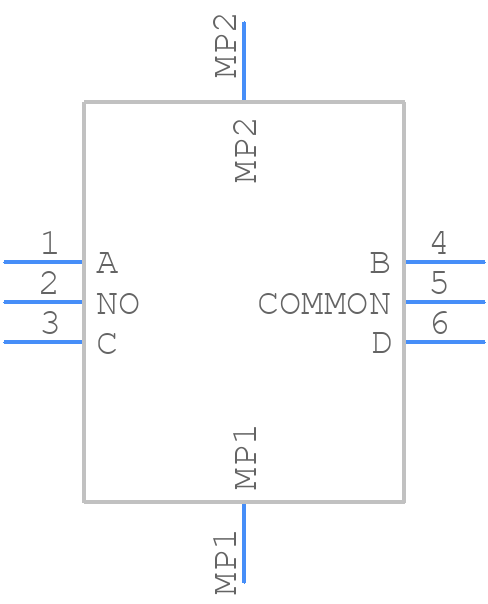

MT5-1L-V-T/R - Diptronics - PCB symbol

PCB Footprints

MT5-1L-V-T/R - Diptronics PCB footprint - Other - Other - MT5-1L-V-T/R-3

3D Models

MT5-1L-V-T/R - Diptronics - 3D model - Other - MT5-1L-V-T/R-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for MT5-1L-V-T/R
Part Number MT5-1L-V-T/R
Manufacturer Diptronics
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - MT5-1L-V-T/R-3
Released Date Mar 23, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MT5-1L-V-T/R Details

Manufacturer Part Number:
MT5-1L-V-T/R
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
Diptronics Manufacturing Inc
Switch Type:
KEYPAD SWITCH
