MT5301 - NOVOSENSE

Description: 8~36V Operating Vcc Range Operating Frequency: 20KHz -40V Reversed Power Supply Protection -40V Reversed Output Protection Output Over-Current Protection (±350mA） Short Circuit Protection

Download MT5301 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MT5301 model

Email notifications will be applied after download.

Send part feedback

Symbol

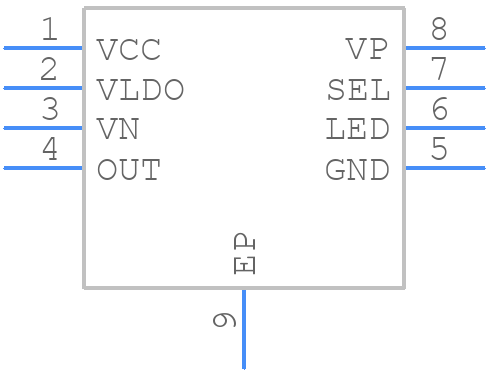

MT5301 - NOVOSENSE - PCB symbol

PCB Footprints

MT5301 - NOVOSENSE PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN 2*3 8L

3D Models

MT5301 - NOVOSENSE - 3D model - Small Outline No-lead - DFN 2*3 8L

Datasheet Download Datasheet
Stock & Prices Price & Stock for MT5301
Part Number MT5301
Manufacturer NOVOSENSE
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - DFN 2*3 8L
Released Date Jul 26, 2025
Last Modified Date Jul 26, 2025 8:07 AM UTC
Pinout / Pin List Click Here (Member Only)

MT5301 Details

Manufacturer Part Number:
MT5301
Manufacturer:
Suzhou Novosense Microelectronics Co Ltd
