MT6224-AHRG-A footprint, schematic symbol and 3D model by Marktech Optoelectronics

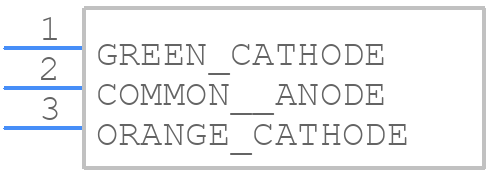

Symbol

PCB Footprints

3D Models

MT6224-AHRG-A Details

The recommended storage temperature for MT6224-AHRG-A is -20°C to 30°C, with a relative humidity of 60% or less.
While the operating temperature range of MT6224-AHRG-A is -40°C to 100°C, it's not recommended to use it in high-temperature applications (>85°C) for extended periods, as it may affect the device's reliability and lifespan.
When soldering MT6224-AHRG-A, use a soldering iron with a temperature of 260°C or less, and avoid applying excessive force or bending the leads. Also, ensure the soldering time is within 3 seconds to prevent thermal damage.
The recommended soldering method for MT6224-AHRG-A is wave soldering or reflow soldering, with a peak temperature of 260°C or less.
While MT6224-AHRG-A is designed to operate in a relative humidity of 60% or less, it's not recommended to use it in high-humidity environments (>80%) for extended periods, as it may affect the device's reliability and lifespan.

Community Provided

System Verified

Community Approved

Use the download button to access the MT6224-AHRG-A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MT622, or try a keyword search, such as Visible LEDs
